Solar and extension
Foldable solar panels
Two foldable monocrystalline panels, built to recharge an NV station where there is no mains socket and no generator set. Standard MC4 connectors, with XT60, Anderson, DC7909 and DC5521 adapters in the NV-S100 box: they plug into an NV station as easily as into almost any power station on the market.

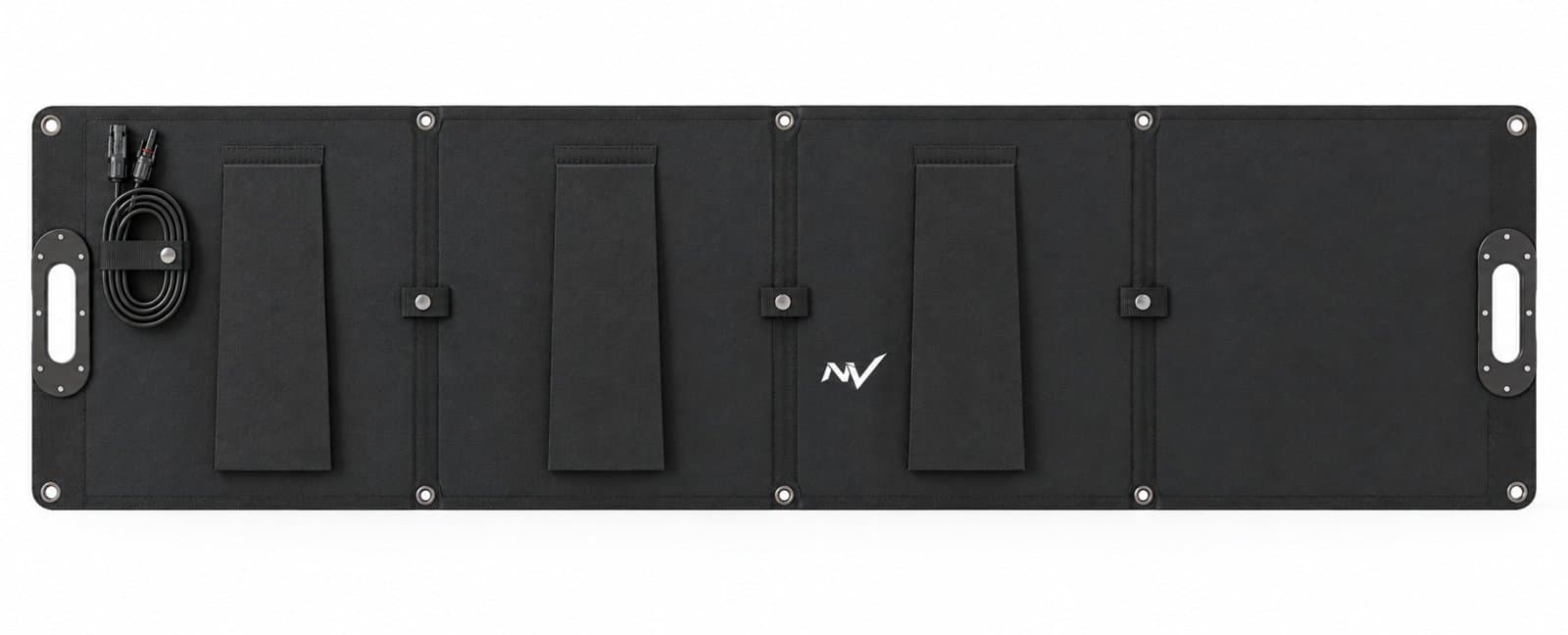

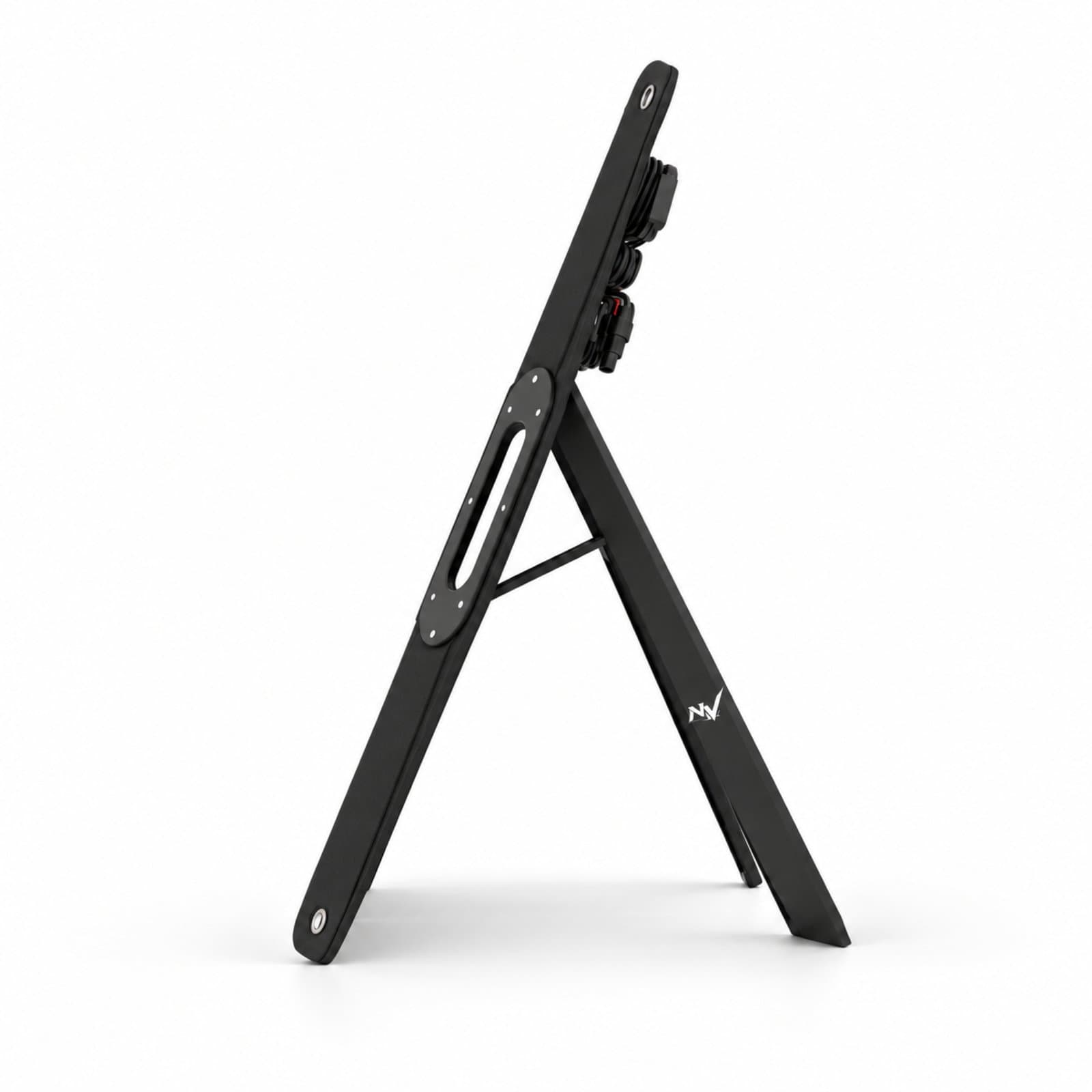

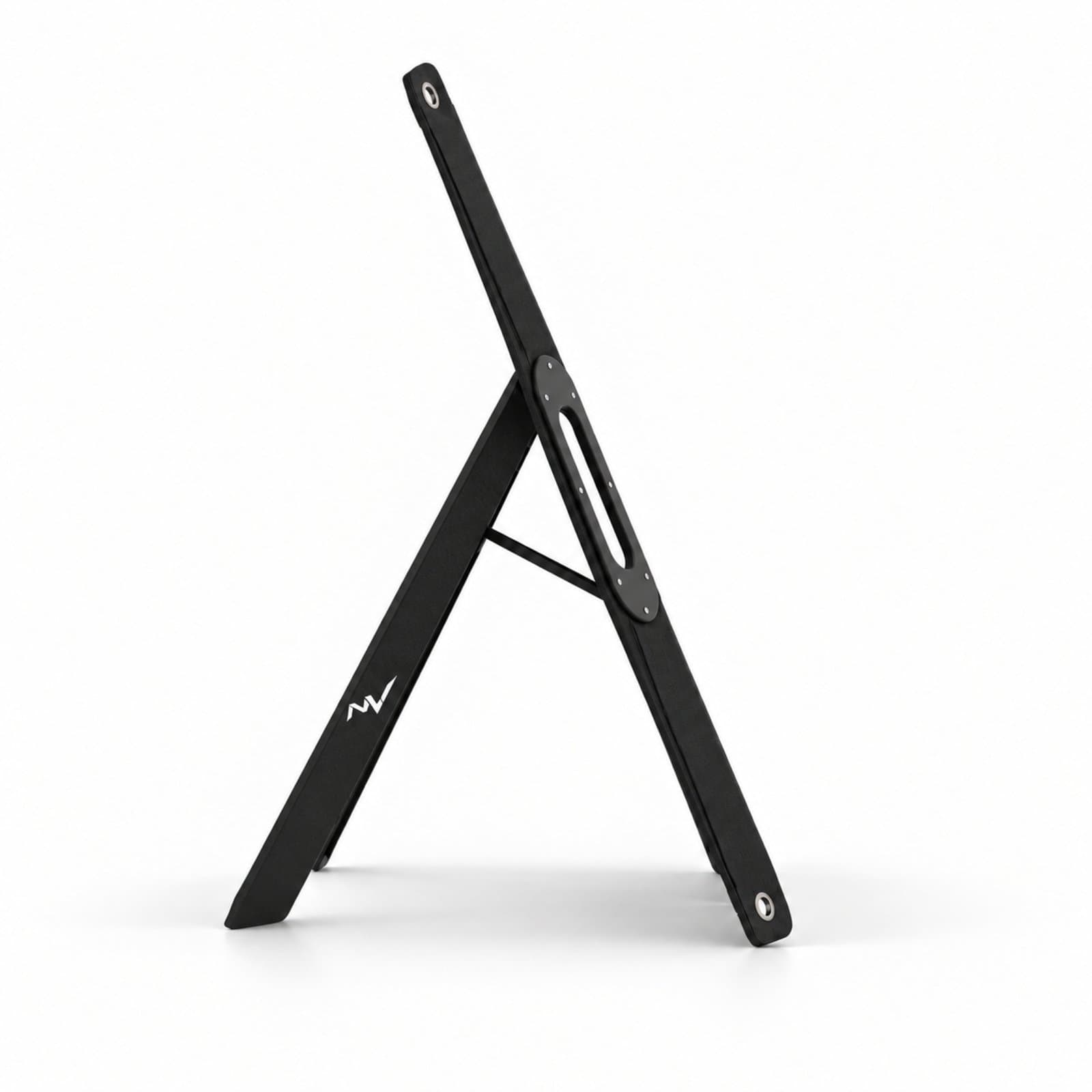

NV-S240
Best power-to-footprint ratio in the range, and the most requested.
| Rated power | 240 W (±5%) |
|---|---|
| Cell efficiency | 23% |
| Cell type | Monocrystalline PERC silicon, grade A |
| Open-circuit voltage (Voc) | 24.6 V |
| Short-circuit current (Isc) | 12.3 A |
| Max power voltage (Vmp) | 20.5 V |
| Max power current (Imp) | 11.7 A |
| Ingress protection | IP65 |
| Operating temperature | −20 °C to 85 °C |
| Folded size | 665 × 590 × 60 mm |
| Unfolded size | 2,529 × 590 × 35 mm |
| Net / gross weight | 8.5 kg / 11 kg |
| Connections | DC7909 cable and a pair of MC4 connectors |
| Certifications | CE · RoHS · FCC |
In the box
- Panel × 1
- DC7909 harness and MC4 connectors × 1
- Detachable sun-dial indicator × 1
- User manual × 1
- Warranty card × 1
Illustration: not a contractual representation.

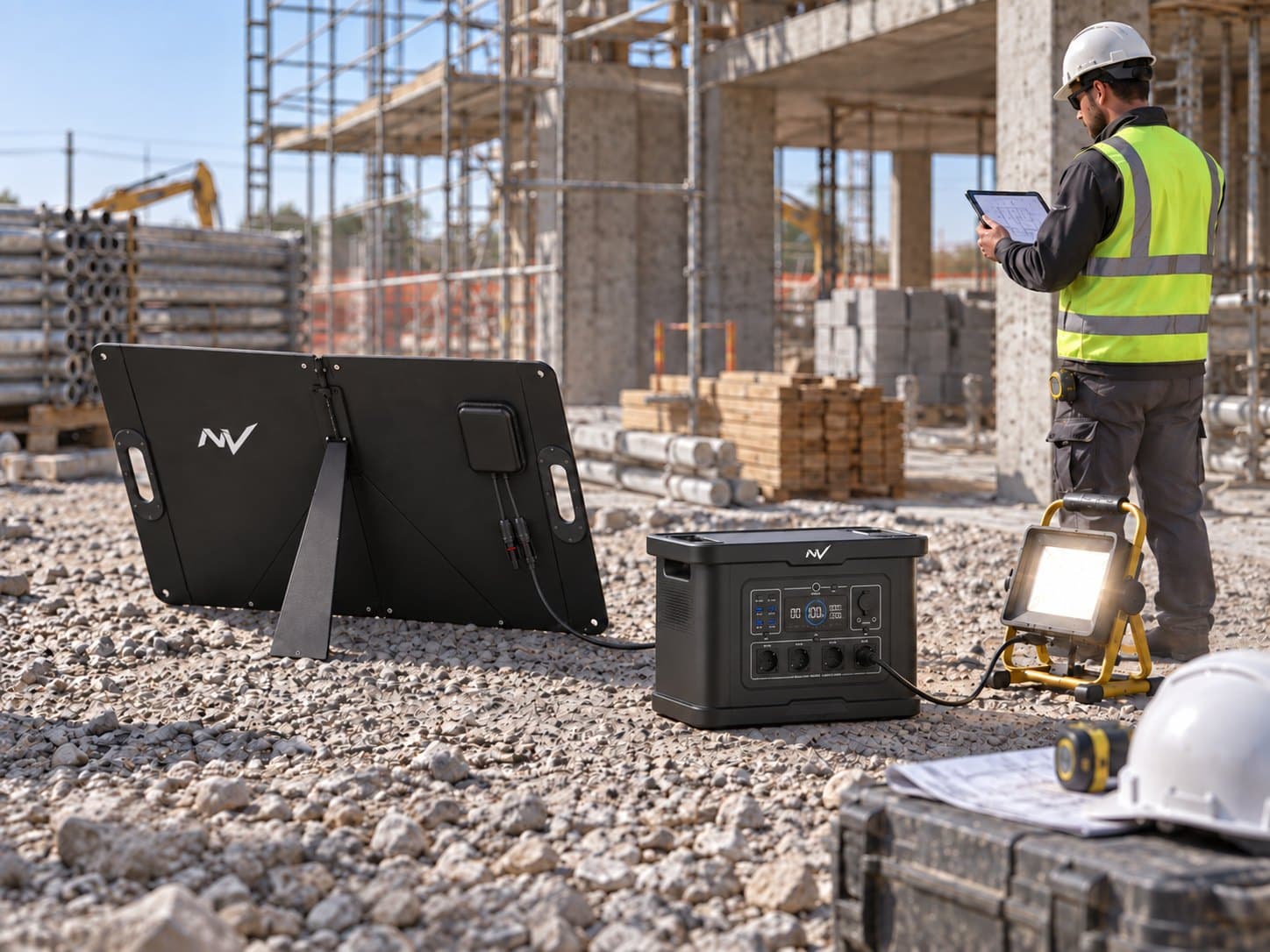

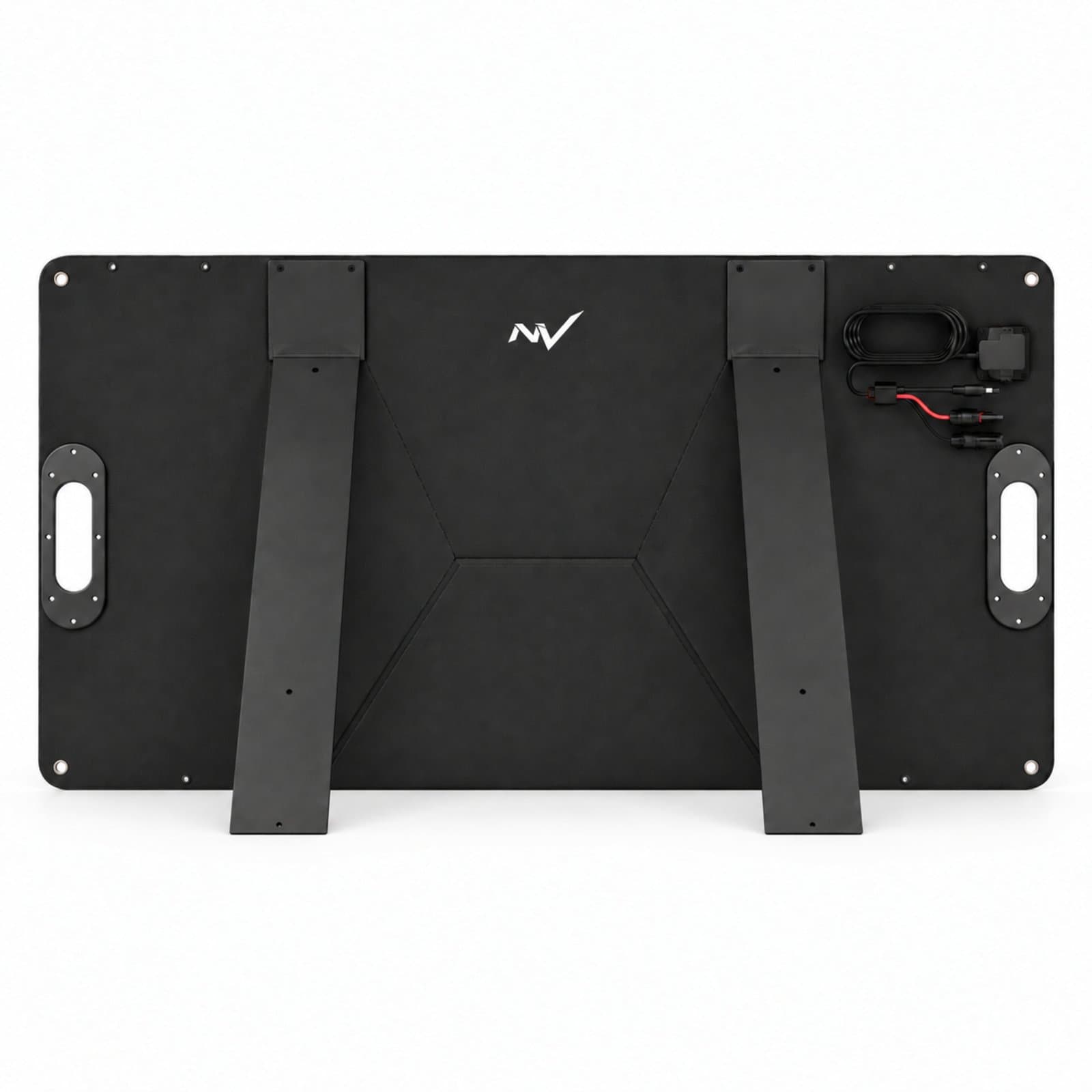

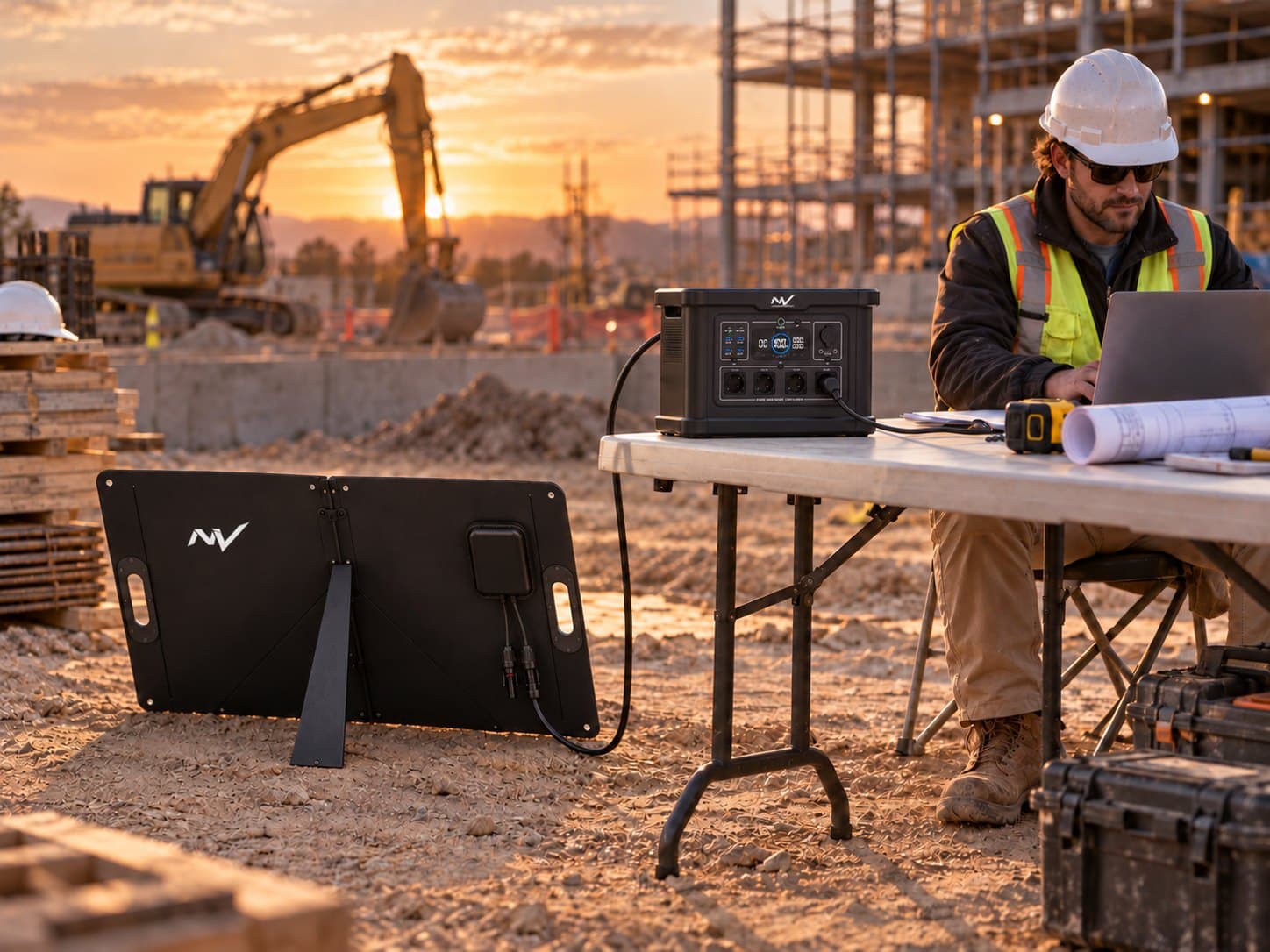

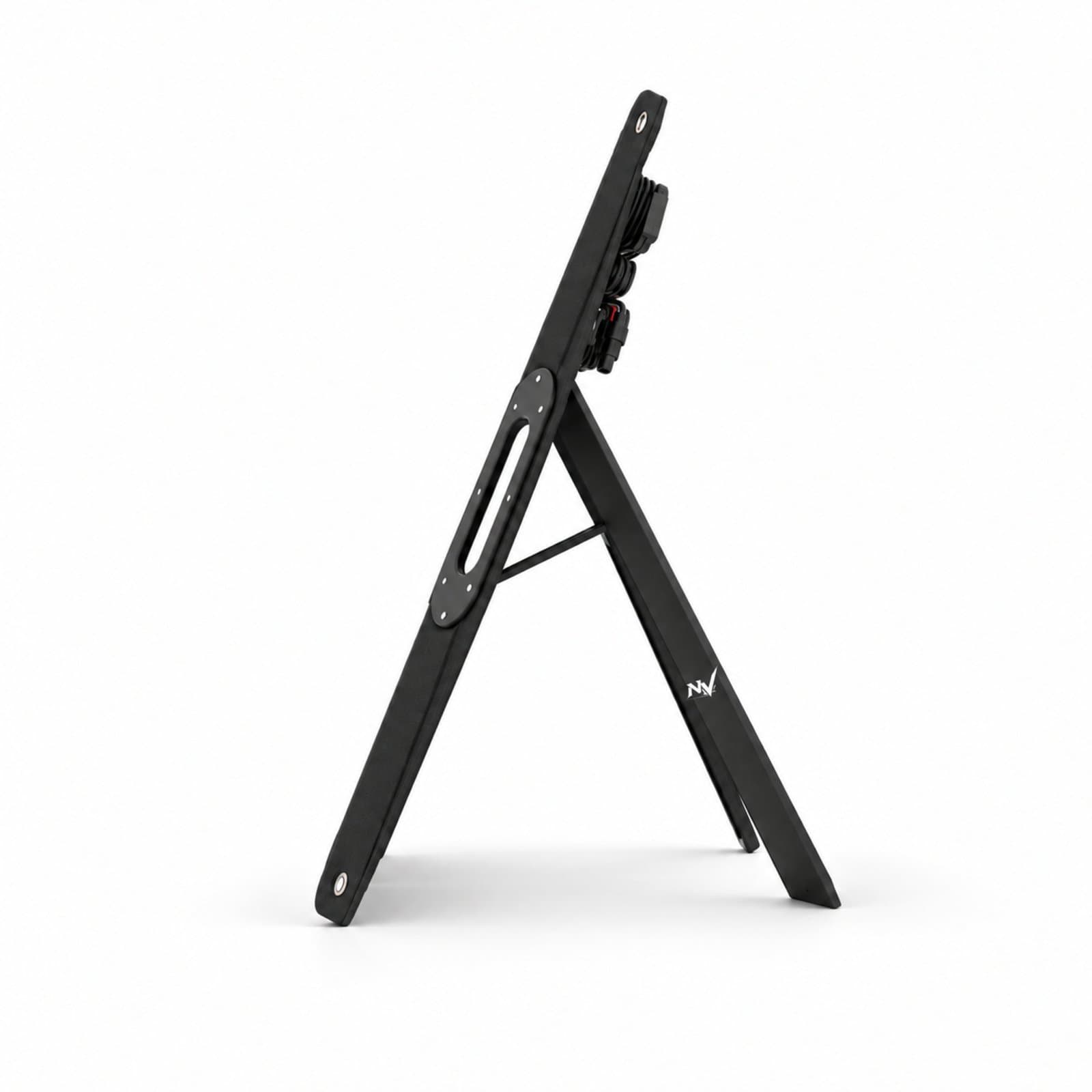

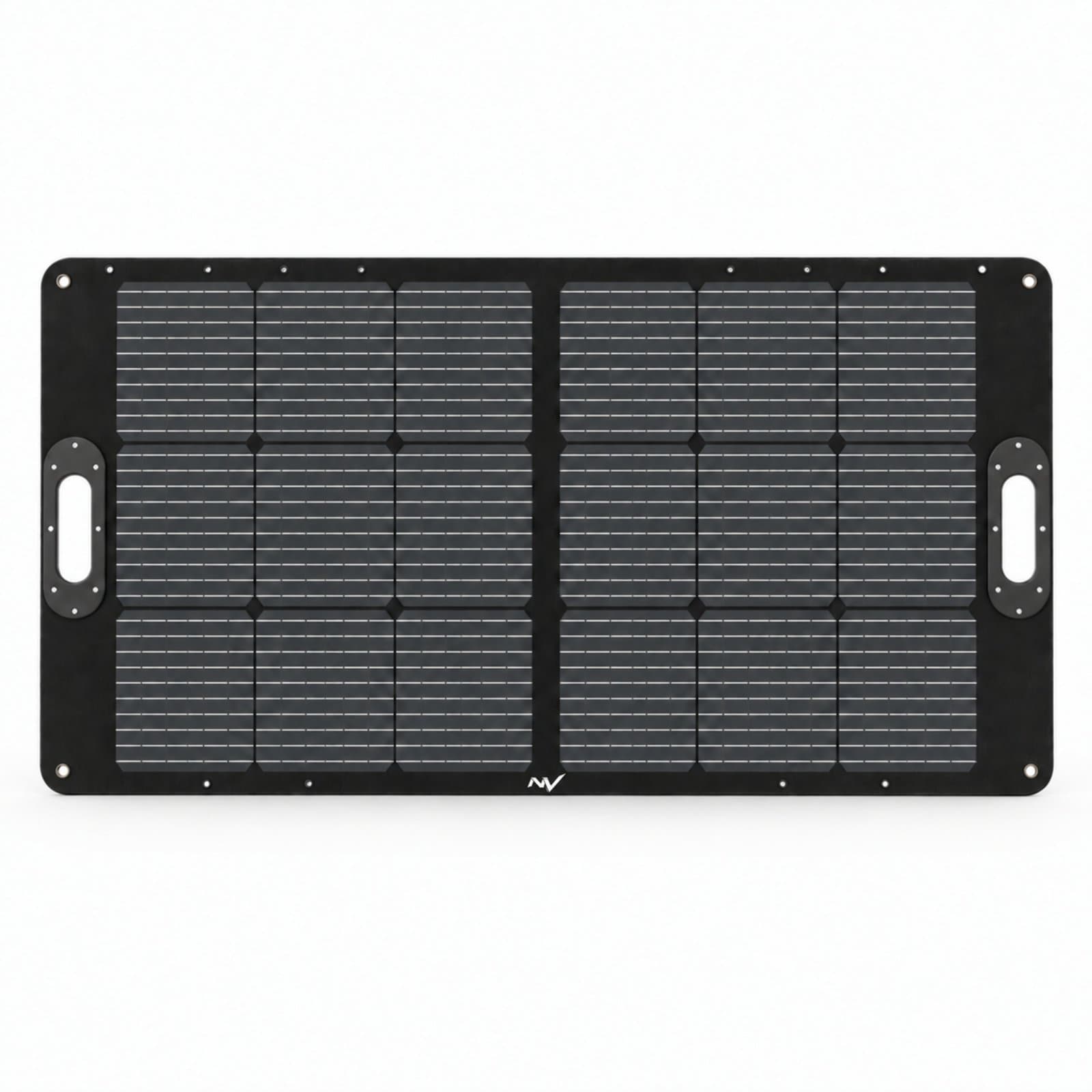

NV-S100
The back-up panel. Fits behind a car seat, enough to keep a compact station topped up.
| Rated power | 100 W (±5%) |
|---|---|
| Cell efficiency | 23% |
| Cell type | Monocrystalline PERC silicon, grade A |
| Open-circuit voltage (Voc) | 24.6 V |
| Short-circuit current (Isc) | 5.27 A |
| Max power voltage (Vmp) | 20.5 V |
| Max power current (Imp) | 4.88 A |
| Ingress protection | IP65 |
| Operating temperature | −20 °C to 85 °C |
| Folded size | 555 × 590 × 50 mm |
| Unfolded size | 1,110 × 590 × 35 mm |
| Net / gross weight | 4.5 kg / 6 kg |
| Connections | MC4 to 4-way adapter: Anderson, XT60, DC7909 and DC5521 |
| Cable length | 1,450 mm (850 mm MC4 cable + 600 mm adapter) |
| Certifications | CE · RoHS · FCC |
In the box
- Panel × 1
- MC4 to Anderson, XT60, DC7909 and DC5521 cable × 1
- Detachable sun-dial indicator × 1
- Bases × 2
- User manual × 1
- Warranty card × 1
Illustration: not a contractual representation.
At a glance
- Foldable and portable: 4.5 kg to 8.5 kg, briefcase format, integrated kickstands.
- IP65: built to stay outside all day.
- Universal: MC4 connectors on both models, XT60, Anderson, DC7909 and DC5521 adapters supplied as standard with the NV-S100.
Which panel on which station
Number of panels and maximum panel power, station by station.

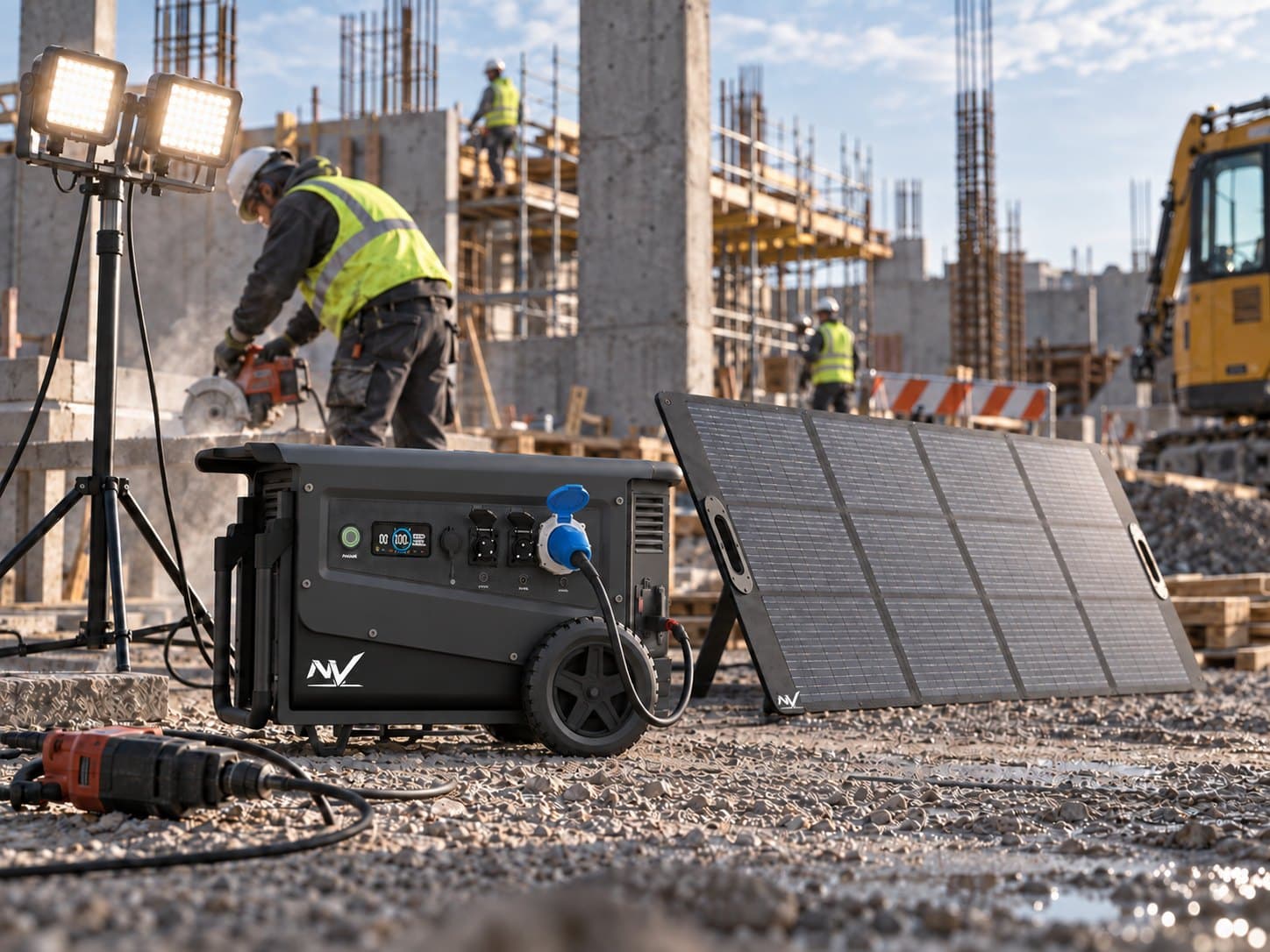

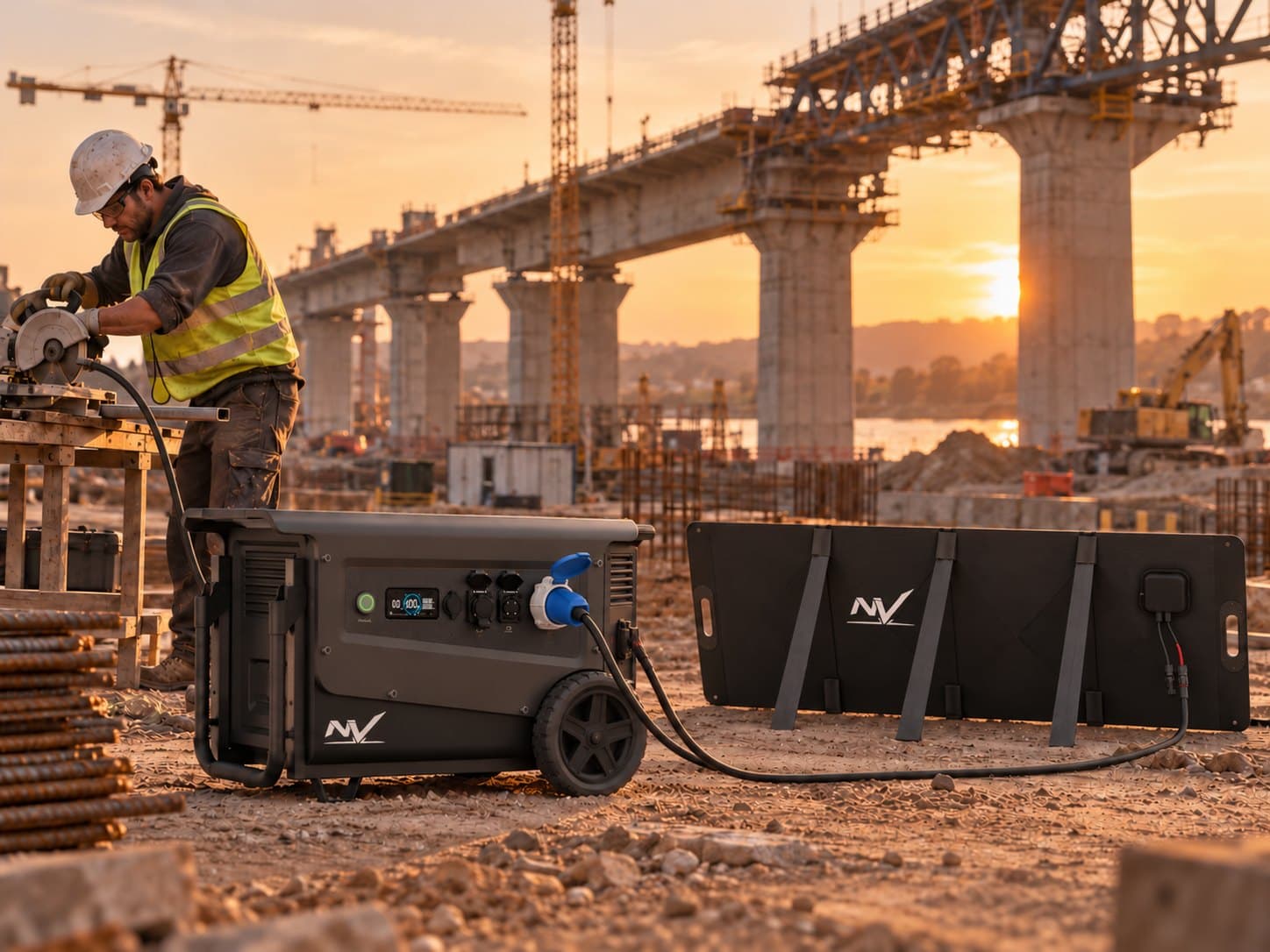

Up to six NV-S240 panels in series on an NV-W36 or NV-W50: 1,440 W peak, an NV-W36 refilled in half a day of sun.
| NV-S100 | NV-S240 | |
|---|---|---|
| NV-C24 | 1 to 3 in series or 2 in parallel, 300 W | 1 to 3 in series, 720 W |
| NV-P36 | 1 to 3 in series or 2 in parallel, 300 W | 1 to 3 in series, 720 W |
| NV-W36 | 1 to 6 in series, 600 W | 1 to 6 in series, 1,440 W |
| NV-W50 | 1 to 6 in series, 600 W | 1 to 6 in series, 1,440 W |
Series or parallel?
In series: voltages add up, current stays that of a single panel. This is how panels connect to stations with a wide voltage window (NV-W36, NV-W50), and how the NV-S240 connects to every station.
In parallel: currents add up, voltage stays that of a single panel. It only applies to the NV-S100 on the NV-C24 and NV-P36, two panels at most.
Three rules
- Never mix panels of different ratings on the same string.
- Total open-circuit voltage (Voc × number of panels in series) must never exceed the station's maximum input voltage.
- Aim the panel with the sun-dial indicator: the light spot must fall in the centre of the circle.
Not included
- MC4 parallel connector: wire two panel strings in parallel.
- 3 m red and black MC4 extension: move the panels away from the station.
One site, one runtime, a number of machines: we price the configuration for you.
Tell us the equipment to power, the runtime needed per station and the number of units. A priced configuration comes back to you within one working day.
