Off-grid sites
5,040 Wh, expandable to 35.3 kWh with NV-B5 batteries: the site accommodation runs for several days.
Illustration: not a contractual representation.
Construction site

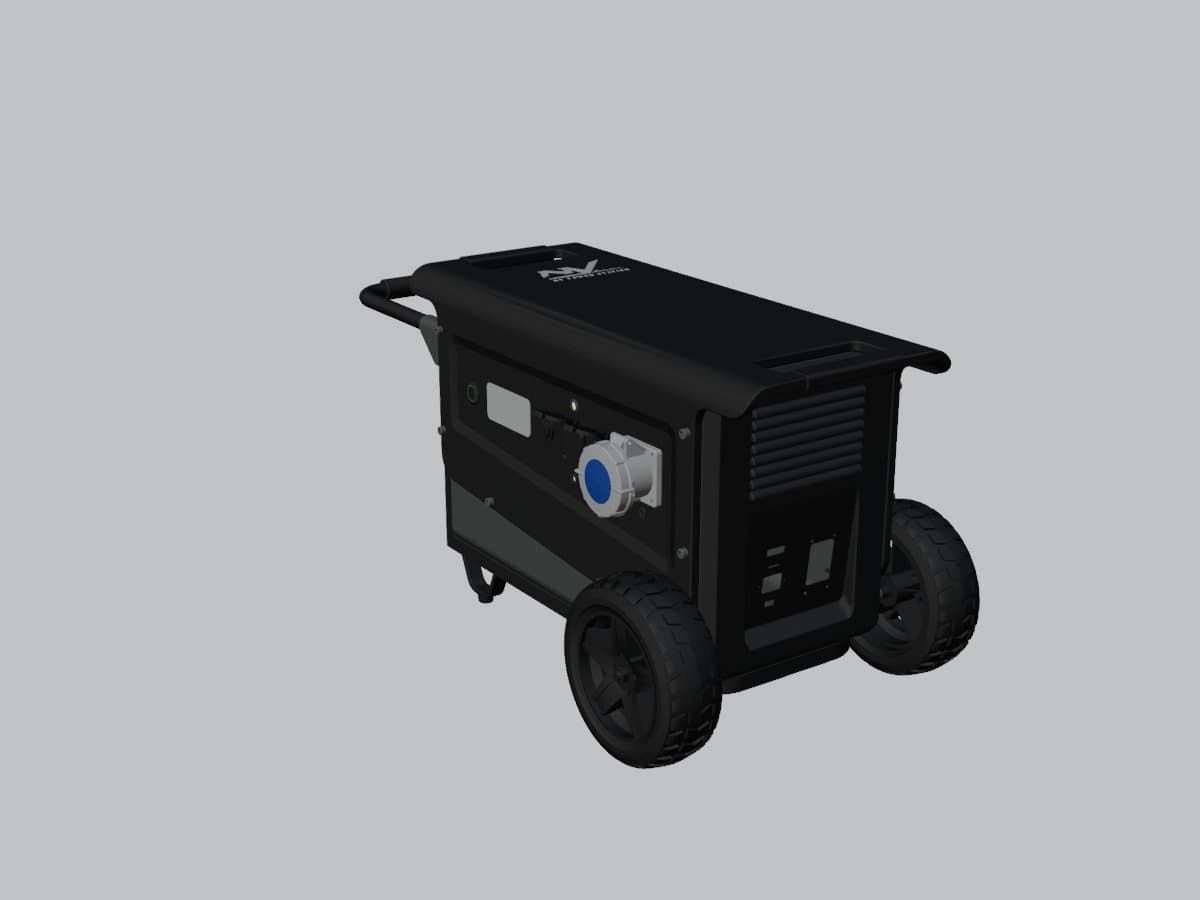

NV-W50: construction, industry and events
The big one. 5,040 Wh, 5,000 W, expandable to 35.3 kWh: several days off-grid.
- 5,040 Wh
- 5,000 Wcontinuous
- 7,000 Wpeak
- 68 kg

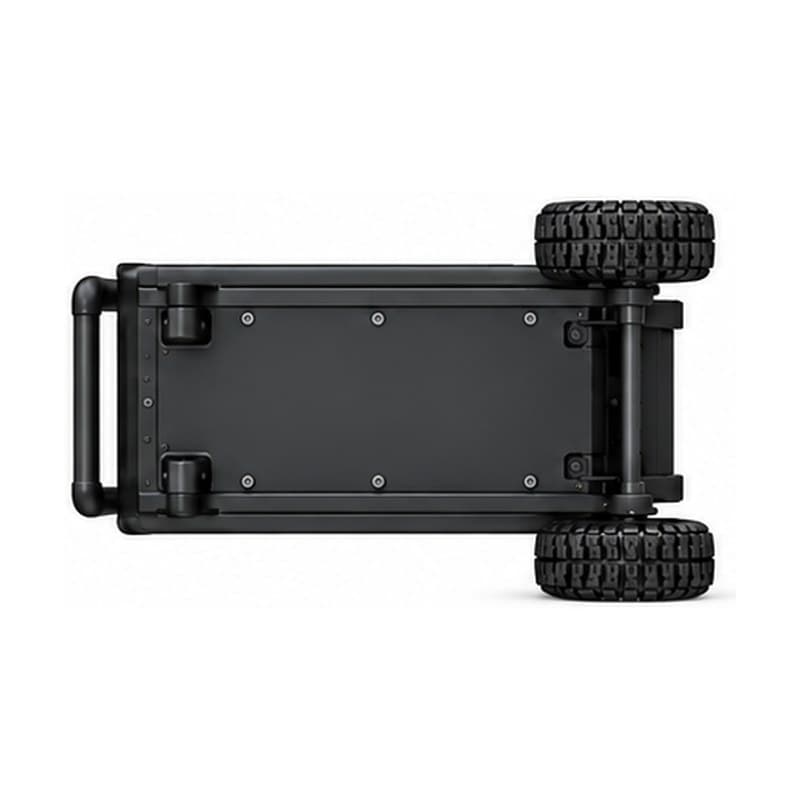

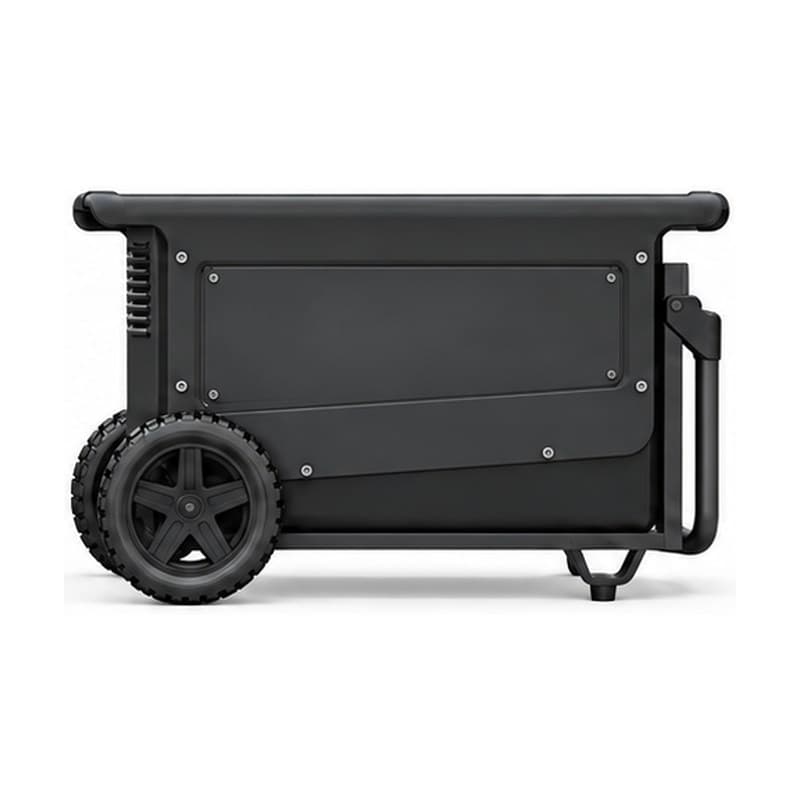

Same steel shell and same wheeled chassis as the NV-W36, with capacity raised to 5,040 Wh and 5,000 W continuous. The model that lasts several days on an off-grid site.
Sold on quotation
Who it is for
Mines and quarries
Dust, mud, rough ground: IP54 chassis, IP67 sockets, all-terrain wheels. It follows the crew to the working face.
Pumping and emergency response
5,000 W continuous and 7,000 W peak: a sump pump starts and runs without tripping the breaker.
Ports, docks and industry
It replaces the combustion-engine generator set in confined spaces: no CO, no engine, no refuelling.
Key features
- 5,000 W continuous, 7,000 W peak : the most powerful in the range. Compressor, sump pump, concrete mixer and demolition hammer start without tripping the breaker.
- The lowest cost per stored kWh in the range : this is the model that returns the most energy per euro invested.
- Built-in 30 mA RCD and a circuit breaker on each socket: personal protection is built into the machine, not added around it.
- Grade A LiFePO4 battery, automotive-grade cells: 3,000 cycles above 80% capacity, 4,000 cycles above 70%.
- Smart BMS : cell balancing, thermal protection, cut-off on overload and short circuit.
- Built-in MPPT : panels connect directly, with no external charge controller.
- IP54 on the chassis, IP67 on the sockets : the station can stay outdoors.

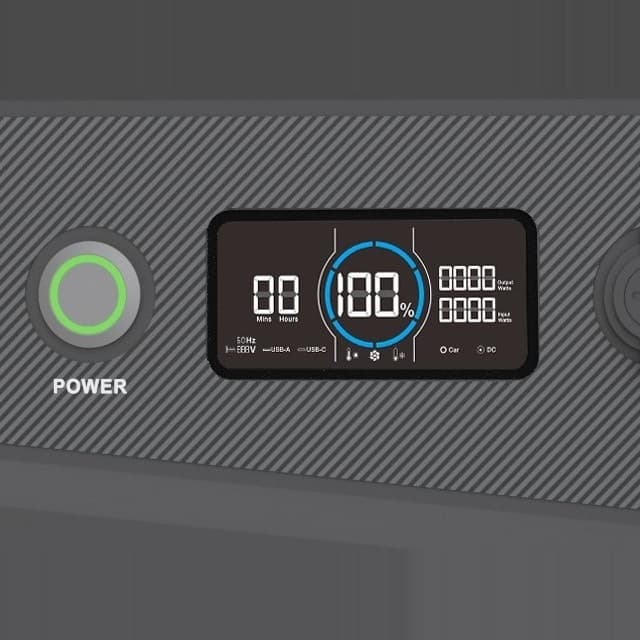

- 50 Hz switchable to 60 Hz from the front panel: the same machine works on European grids and on 60 Hz grids.
- Simultaneous charging and use : the station supplies power while it recharges.
What it runs
| Equipment | Power | Runtime |
|---|---|---|
| LED site lighting, 4 floodlights | 200 W | 21 h 25 |
| Site office, 2 PCs, printer, router | 400 W | 10 h 43 |
| Site accommodation fridge | 150 W | 28 h 34 |
| Drill driver, small tools | 800 W | 5 h 21 |
| 125 mm angle grinder | 1,200 W | 3 h 34 |
| Electric demolition hammer | 1,600 W | 2 h 41 |
| Circular saw | 1,800 W | 2 h 23 |
| Core drill | 2,200 W | 1 h 57 |
| 2 hp compressor | 1,500 W | 2 h 51 |
| Sump pump | 1,100 W | 3 h 54 |
| 160 A MMA welder | 3,500 W | 1 h 13 |
| Site accommodation heater or cooler | 2,000 W | 2 h 09 |
Runtimes calculated on 85% of rated capacity, with the equipment running continuously. A device that does not run continuously (tools, compressor, fridge) lasts much longer than the value shown.
Outputs and charging

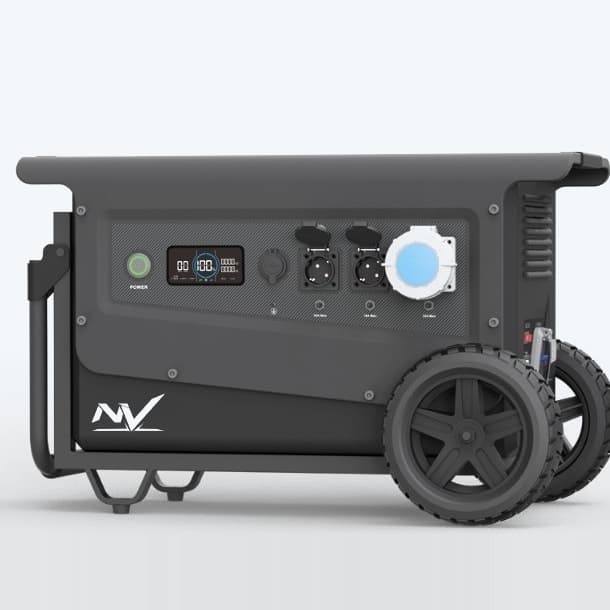

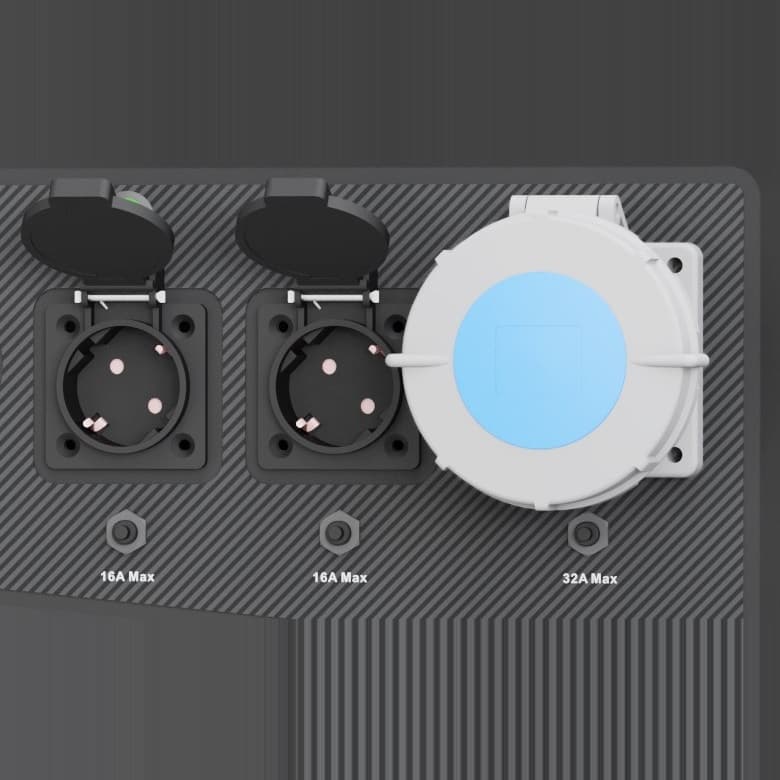

Outputs 2 × 230 V 16 A IP67 + 1 × 32 A industrial · 12 V · USB-A · USB-C
Three ways to charge
- Mains
- full charge ≈ 2 h 30.
- Solar
- Anderson input, built-in MPPT controller: up to 1,440 W of NV panels (6 × NV-S240).
- Generator set
- as a fallback, from a sine-wave generator set.
Simultaneous charging and use: the station supplies power while it recharges.
Compatible with
| NV-S100 | 1 to 6 in series, 600 W |
|---|---|
| NV-S240 | 1 to 6 in series, 1,440 W |
| Usable maximum | up to 1,440 W of NV panels |
Extension batteries

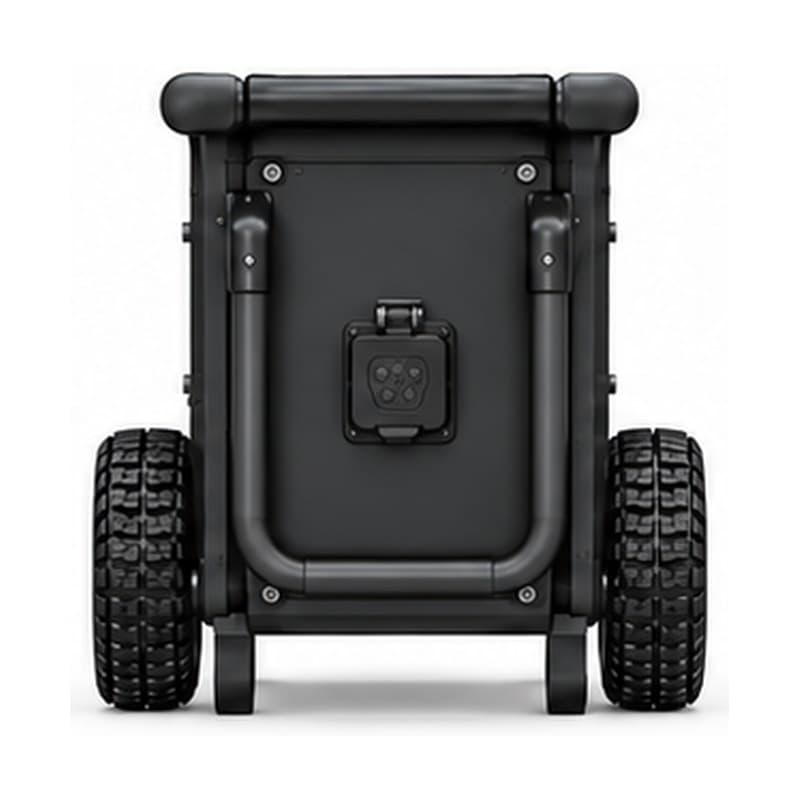

Up to six NV-B5 batteries (5,040 Wh) connect in parallel to the expansion port on the left-hand side, with the station switched off, using the cable supplied. Total capacity rises to 35.3 kWh. The batteries extend run time, never power: choose the model for its power first, then the number of batteries for the duration.

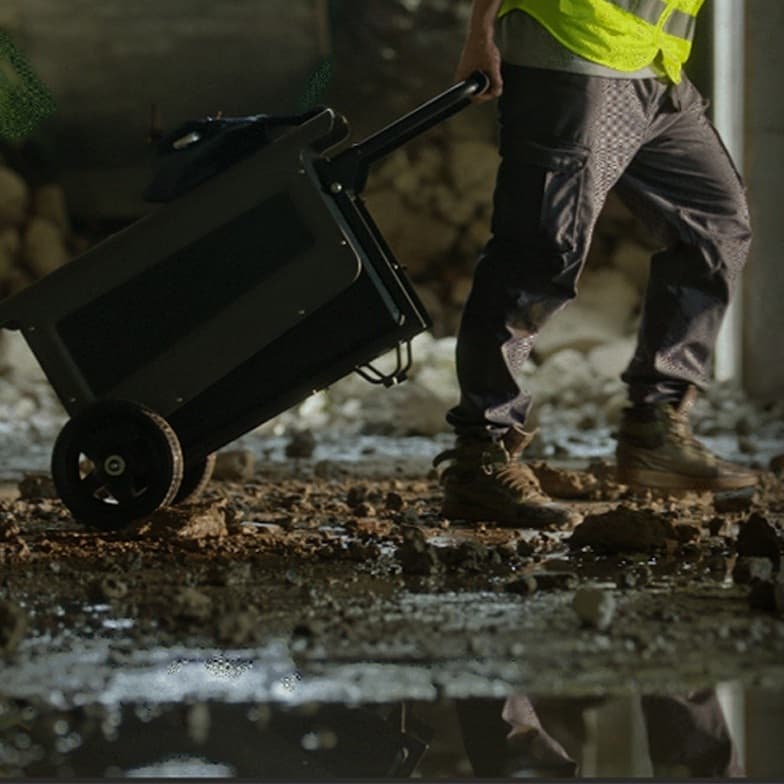

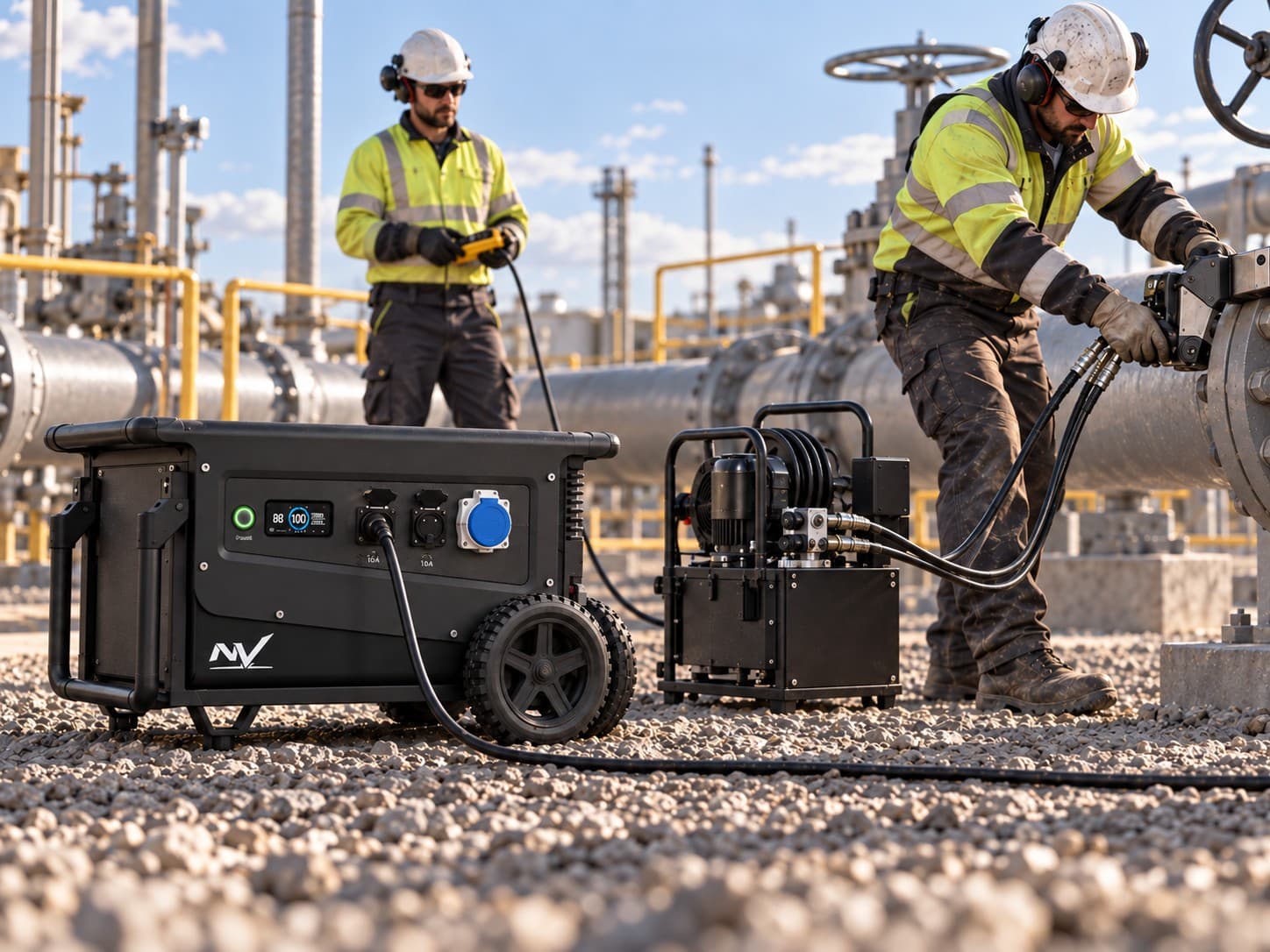

In the field
Illustration: not a contractual representation.

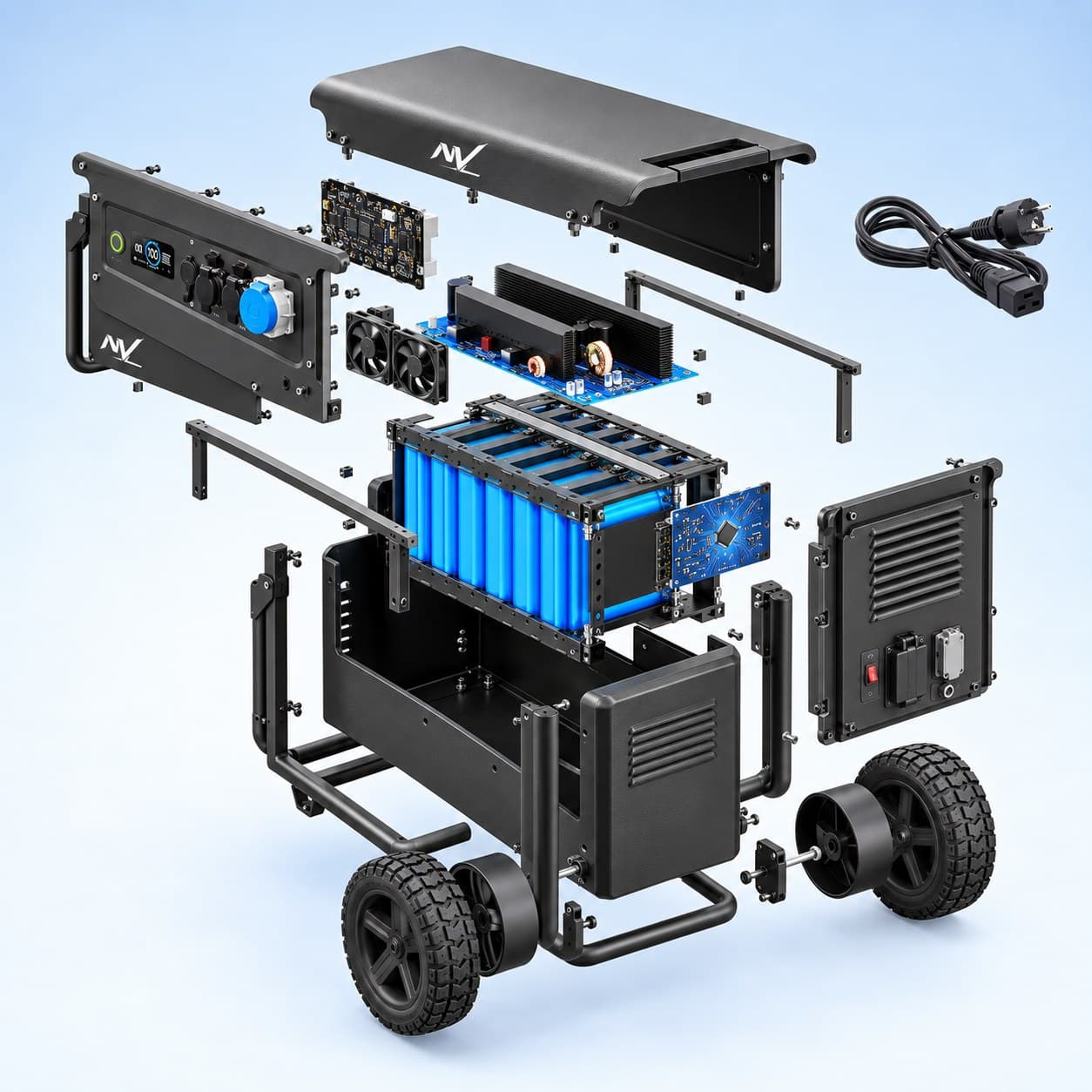

What's inside
Illustration: not a contractual representation.
Full specifications
Battery
| Nominal capacity | 5,040 Wh |
|---|---|
| Nominal voltage | 48 V DC / 105 Ah |
| Cell type | Grade A LiFePO4, automotive cell |
| Estimated service life | 3,000 cycles > 80% · 4,000 cycles > 70% |
| Parallel expansion | Up to 6 additional batteries, maximum recommended by the manufacturer |
230 V output
| Rated power | 5,000 W |
|---|---|
| Peak power | 7,000 W |
| Waveform | Pure sine wave |
| Voltage / frequency | 220 to 240 V, 50 Hz, switchable to 60 Hz |
| AC sockets | 2 × 16 A Schuko socket + 1 × 32 A industrial socket |
| Protection per socket | Circuit breaker on each outlet |
| Residual current protection | 30 mA RCD |
| Digital protection | Overload, short circuit, over- and under-voltage |
| Earth rod | Not included in the box |
| UPS switchover (EPS) | < 20 ms |
USB and 12 V outputs
| USB-A | 5 V/3 A · 9 V/1.8 A · 12 V/1.5 A, 18 W max |
|---|---|
| USB-C | 5 V/3 A · 7 V/2.4 A · 9 V/1.8 A · 12 V/1.5 A, 18 W max |
| 12 V output | 12 V / 10 A cigarette lighter |
Charging inputs
| Mains | 190 to 250 V AC, 13 A max, 2,500 W |
|---|---|
| Mains charging time | ≈ 2 h 30 for a full charge |
| Solar input | Anderson, 12 to 148 V DC · MPPT 18 to 140 V · 15 A max · 2,100 W |
| Solar charge control | Built-in MPPT |
| Compatible panels | 1 to 6 NV-S240 panels in series, 1,440 W · 1 to 6 NV-S100, 600 W |
| Bypass mode | Full power maintained |
| Simultaneous charging and output | Yes |
General
| Dimensions | 852 × 512 × 502 mm |
|---|---|
| Net weight | 68 kg |
| Ingress protection rating | IP54 overall, IP67 sockets |
| Operating temperature | Discharge -20 °C to 40 °C · charge 0 °C to 40 °C · storage -20 °C to 60 °C |
| Control | Smartphone app, Bluetooth and Wi-Fi |
| Compliance | |
| Warranty | 2 years, optional third year |
Values supplied by the manufacturer, subject to change.

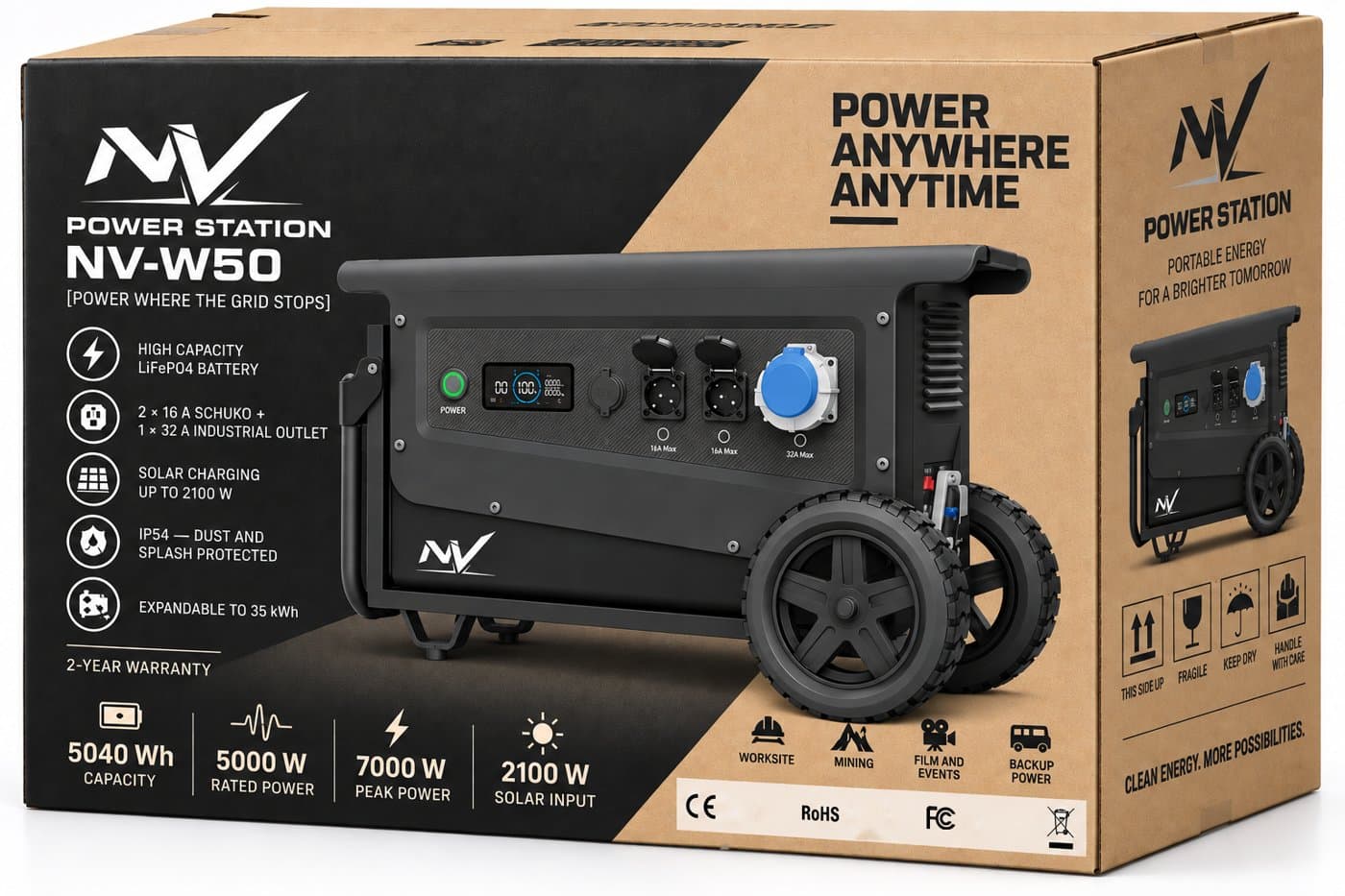

In the box
- Power station × 1
- Mains charging cable × 1
- MC4 to Anderson cable (solar) × 1
- Warranty card × 1
- User manual × 1
Warranty and service
2-year parts and labour warranty, optional third year. Technical and sales contact in France and the UAE.
Delivery time: please contact us.
One site, one runtime, a number of machines: we price the configuration for you.
Tell us the equipment to power, the runtime needed per station and the number of units. A priced configuration comes back to you within one working day.
