Work at height or indoors
34 kg, telescopic handle, wheels: it goes up in a lift, through a doorway and sets down at the point of work.
Illustration: not a contractual representation.
Field

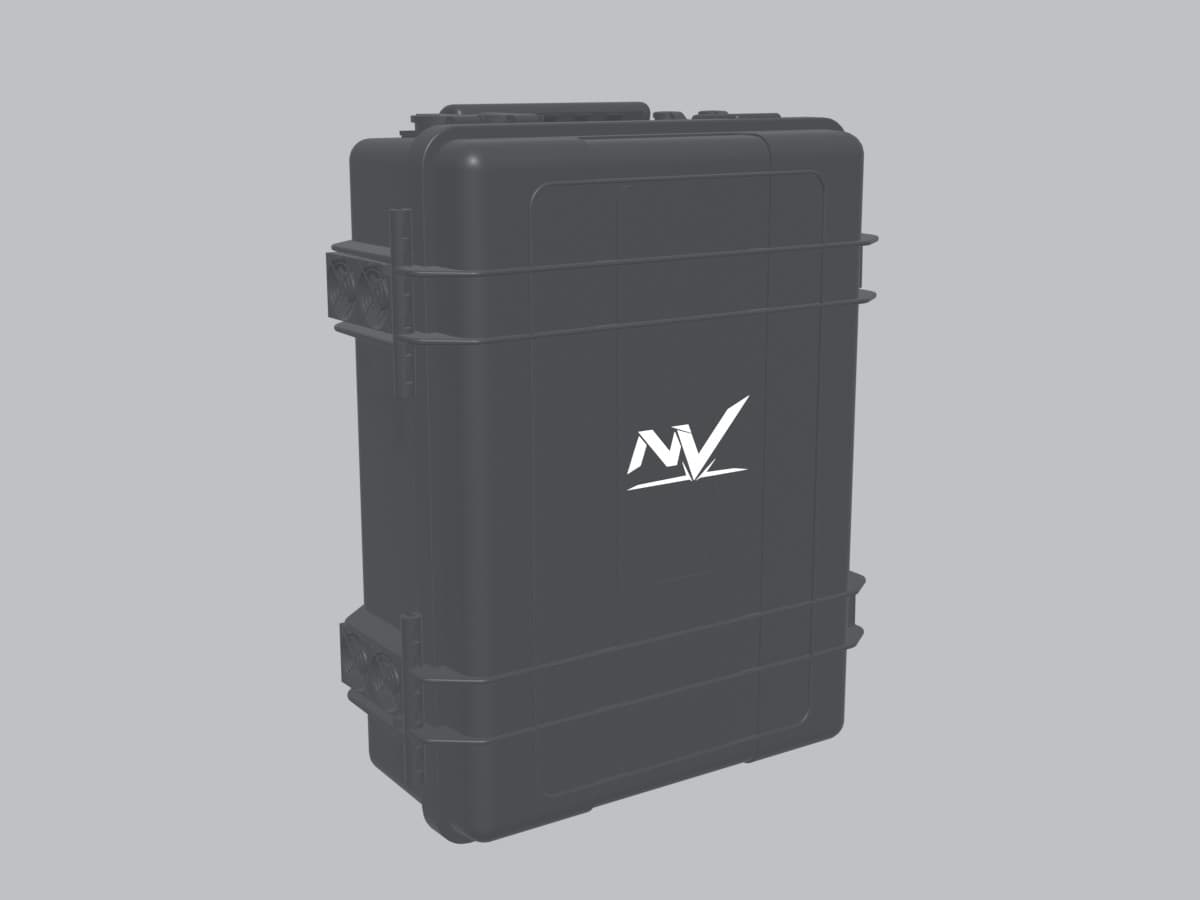

NV-P36: field station in a reinforced case
The case. 3,600 W in 34 kg, for places a wheeled station cannot reach.
- 3,072 Wh
- 3,600 Wcontinuous
- 7,200 Wpeak
- 34 kg
The same LiFePO4 chemistry and pure sine wave as the NV-W36, 3,072 Wh and 3,600 W, in a 34 kg polymer case instead of a 55 kg steel shell. Telescopic handle and wheels: it loads into the back of a van, goes up in a lift and onto scaffolding, right to the exact point of work.
Sold on quotation
Who it is for

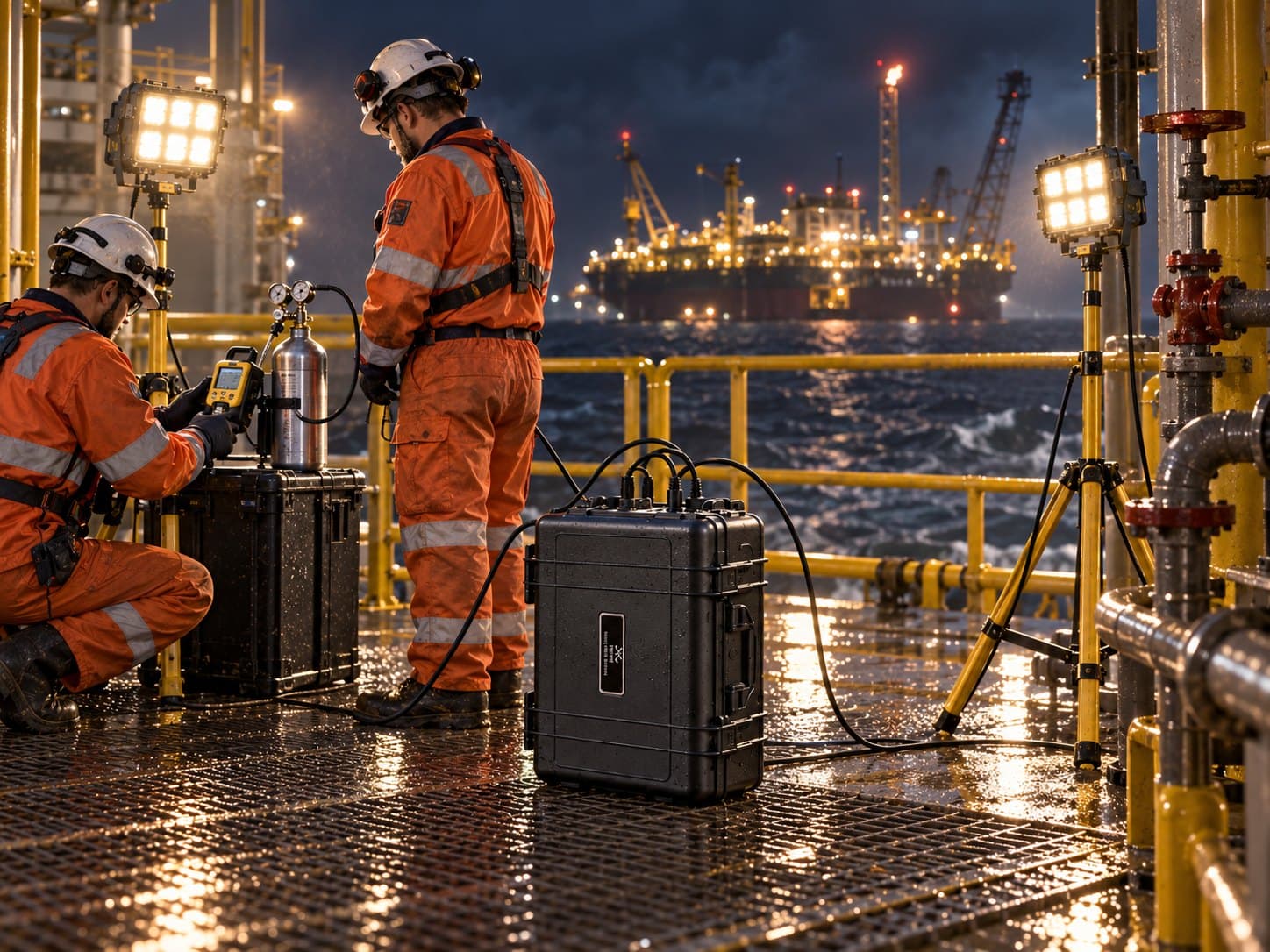

Offshore and industrial sites
The case protects the connectors in transit. It travels closed in the pick-up, the helicopter or the container.
Filming and production
40 dB(A) at one metre: on a set or in an occupied home, nobody hears it.
Emergency posts
Crisis command post, medical tent, telecoms: 3,072 Wh of stable power, with no fuel and no exhaust fumes.
Key features
- 34 kg instead of 55 kg for the same energy and the same power as the NV-W36. This is the model that goes where a steel-shell wheeled station cannot.
- 3,600 W continuous with no derating at 25 °C : rated power holds until the battery is empty, not just for a few minutes.
- 7,200 W peak for 0.3 s and 5,400 W for 5.5 s: the inrush current of a compressor, a circular saw or a sump pump is absorbed.
- 40 dB(A) at one metre : it can be used in an occupied home, an open-plan office or a stairwell without disturbing anyone and with no restriction on working hours.
- LiFePO4 cells assembled in 16S3P, only 48 cells, where an 18650 pack would need around three hundred. Fewer welds, fewer points of failure.
- Three charging sources : mains in 5 hours, 800 W solar with built-in MPPT, and the vehicle's 12 V or 24 V socket while driving.
- Pure sine wave, THD below 3% : safe for IT equipment, measuring instruments and variable-speed machines.
- IP50 : protected against dust. To be kept out of the rain.
What it runs
| Equipment | Power | Runtime |
|---|---|---|
| LED site lighting, 4 floodlights | 200 W | 13 h 03 |
| Site office, 2 PCs, printer, router | 400 W | 6 h 32 |
| Site accommodation fridge | 150 W | 17 h 24 |
| Drill driver, small tools | 800 W | 3 h 16 |
| 125 mm angle grinder | 1,200 W | 2 h 11 |
| Electric demolition hammer | 1,600 W | 1 h 38 |
| Circular saw | 1,800 W | 1 h 27 |
| Core drill | 2,200 W | 1 h 11 |
| 2 hp compressor | 1,500 W | 1 h 44 |
| Sump pump | 1,100 W | 2 h 22 |
| 160 A MMA welder | 3,500 W | 0 h 45 |
| Site accommodation heater or cooler | 2,000 W | 1 h 18 |
Runtimes calculated on 85% of rated capacity, with the equipment running continuously. A device that does not run continuously (tools, compressor, fridge) lasts much longer than the value shown.
Outputs and charging

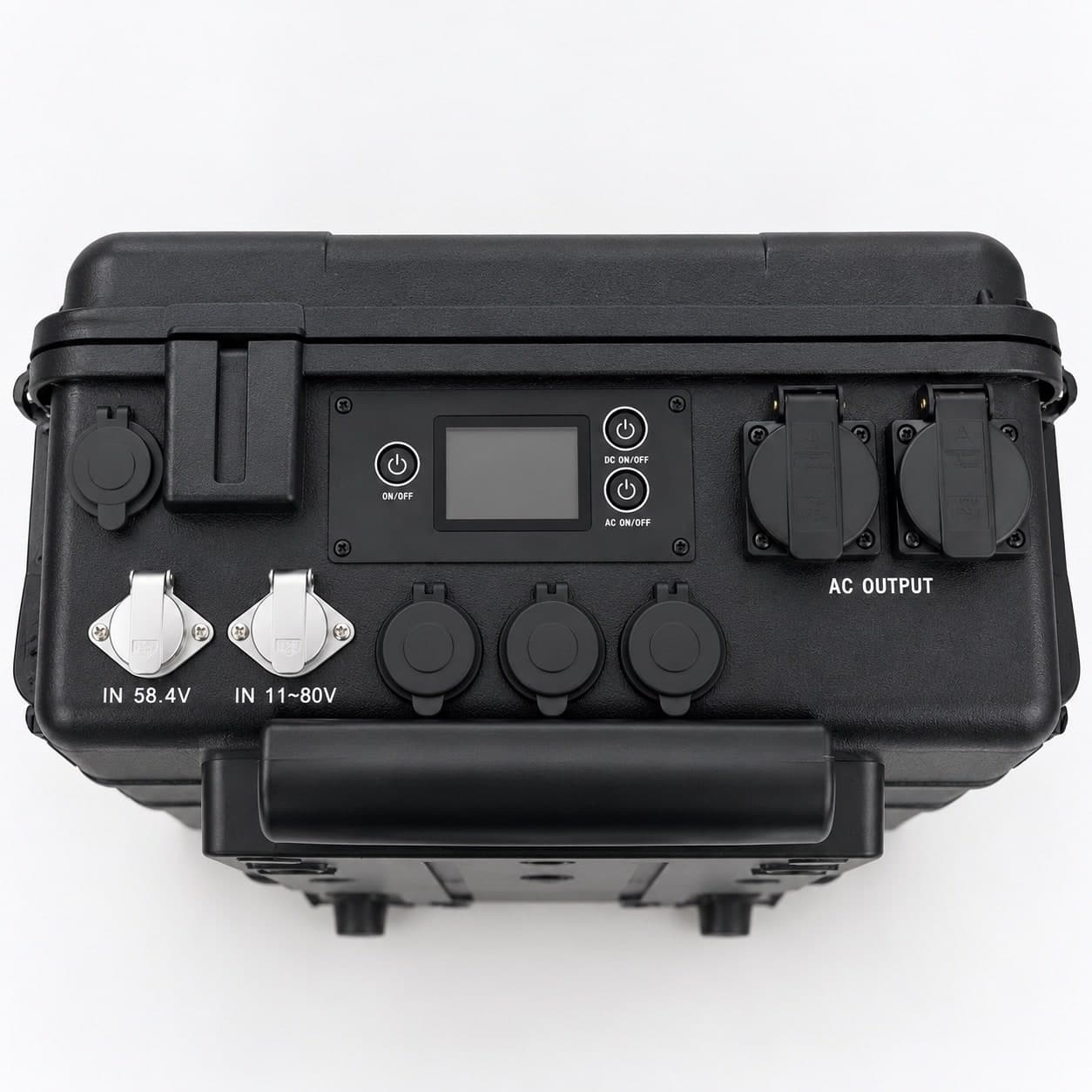

Outputs 2 × 230 V 16 A · 3 × USB-C 60 W · 3 × USB-A · 12 V cigarette-lighter socket
Three ways to charge
- Mains
- full charge ≈ 5 h.
- Solar
- WF20 solar input, 800 W max, built-in MPPT controller; NV panels up to 720 W (3 × NV-S240).
- 12 V or 24 V vehicle
- while driving.
Simultaneous charging and use: the station supplies power while it recharges.
Compatible with
| NV-S100 | 1 to 3 in series or 2 in parallel, 300 W |
|---|---|
| NV-S240 | 1 to 3 in series, 720 W |
| Usable maximum | 720 W of NV panels |

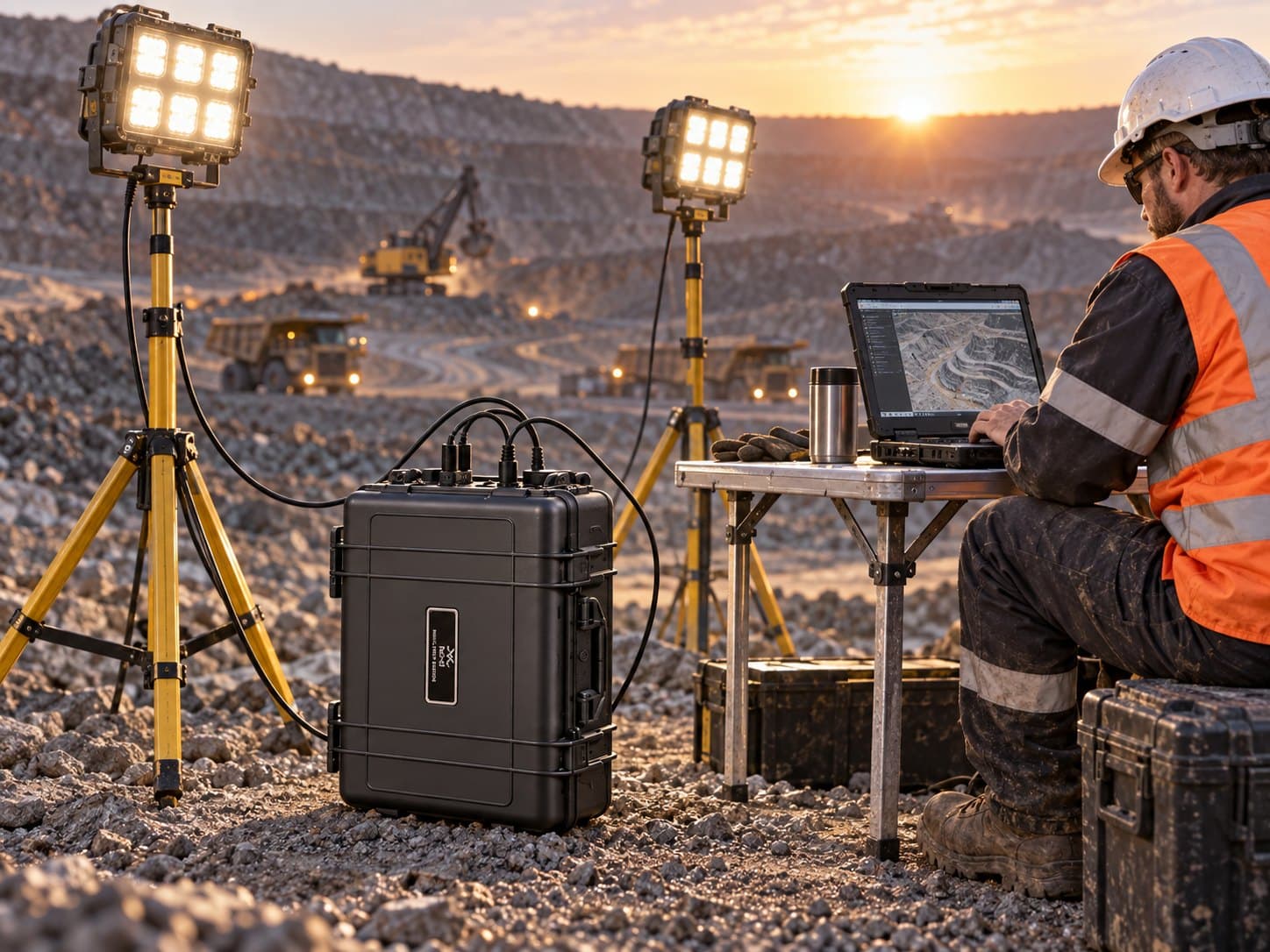

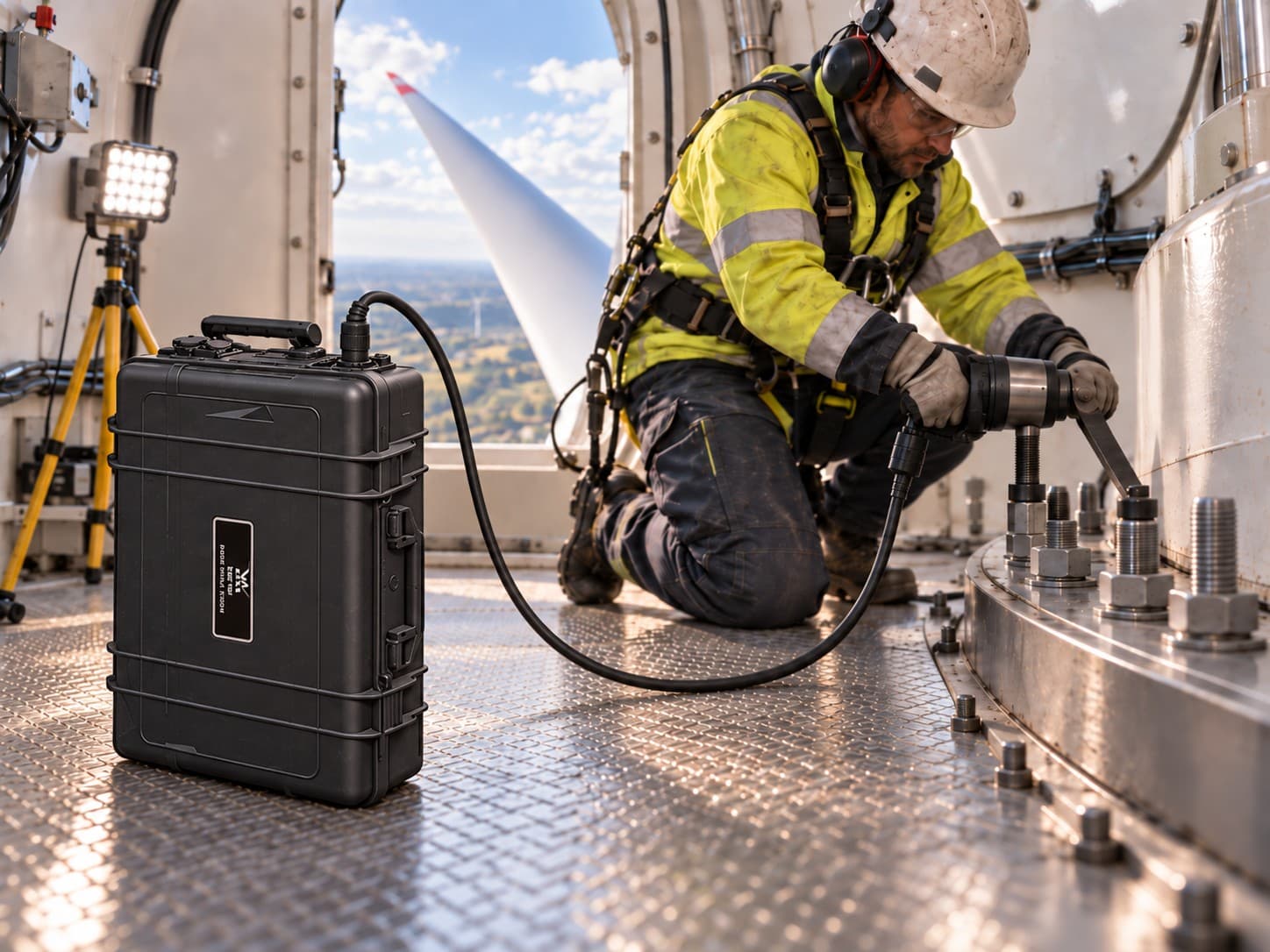

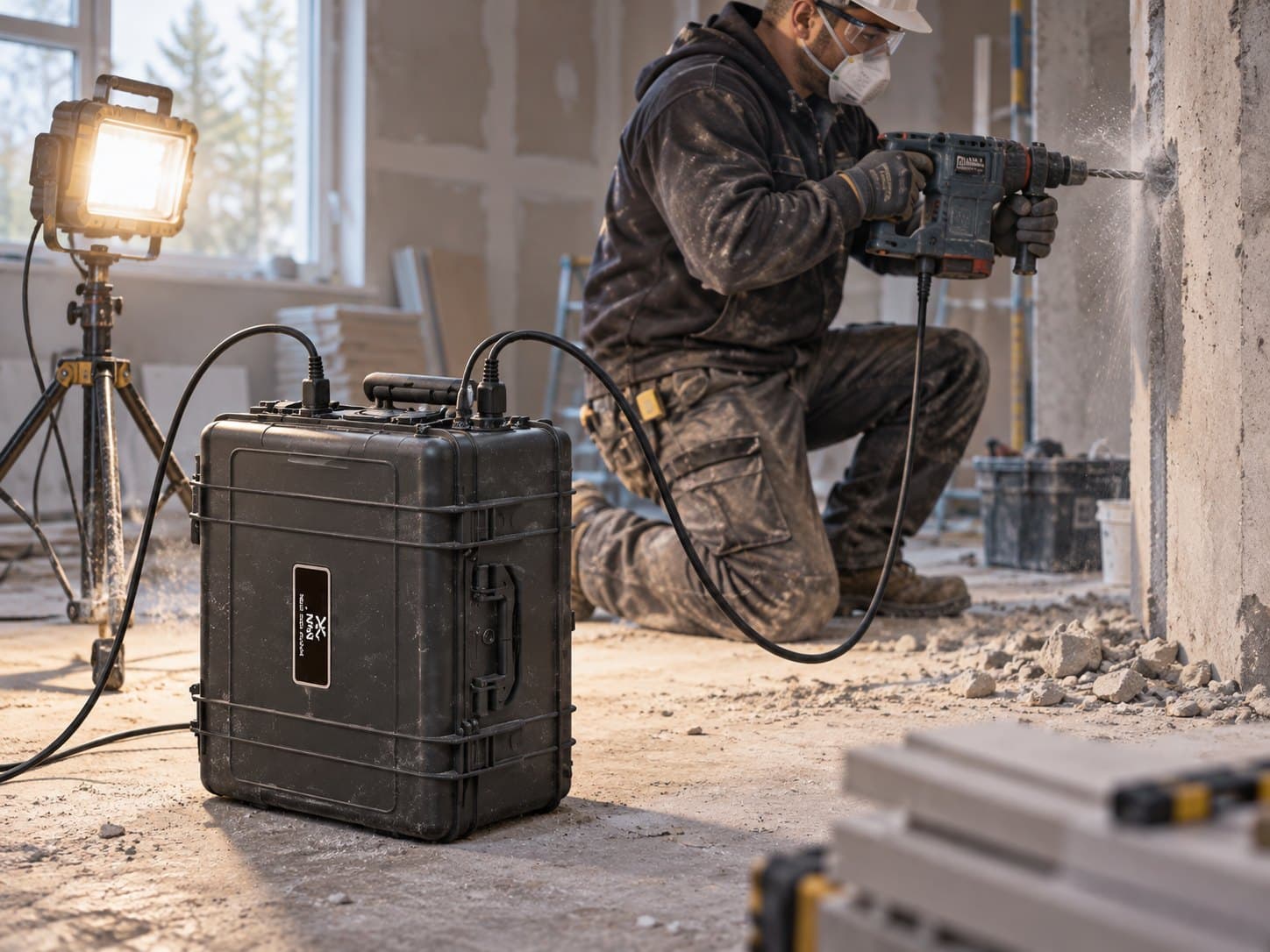

In the field
Illustration: not a contractual representation.
Full specifications
Battery
| Nominal capacity | 3,072 Wh, 51.2 V / 60 Ah |
|---|---|
| Cell type | LiFePO4, 20 Ah / 3.2 V |
| Pack configuration | 16S3P, 48 cells |
| Expansion | Not expandable, add a second unit on a separate circuit |
| Protections | Overload, short circuit, over- and under-voltage, high and low temperature |
230 V output
| Rated power | 3,600 W, no power loss at 25 °C |
|---|---|
| Peak power | 7,200 W held for 0.3 s · 5,400 W held for 5.5 s |
| Waveform | Pure sine wave, THD < 3% |
| AC sockets | 2 × 230 V / 50 Hz socket, type E/F |
| Conversion efficiency | ≥ 90% |
USB and 12 V outputs
| USB-A | 3 × QC 3.0, 36 W max (5 V/2.4 A · 9 V/2 A · 12 V/3 A) |
|---|---|
| USB-C | 3 × PD, 60 W max (5 / 9 / 12 / 15 / 20 V at 3 A) |
| 12 V output | 1 × 12 V / 10 A cigarette-lighter socket, 120 W max |
| Total number of outputs | 9 |
Charging inputs
| Mains | 58.4 V / 15 A charger, 876 W |
|---|---|
| Mains charging time | ≈ 5 h for a full charge |
| Optional fast charger | 58.4 V / 20 A, 1,168 W |
| Solar input | WF20, 800 W max, MPPT 11 to 31 V / 10 A · 31 to 80 V / 15 A |
| Solar charge control | Built-in MPPT |
| Vehicle charging | 12 V or 24 V, cable supplied |
General
| Dimensions | 560 × 450 × 230 mm |
|---|---|
| Net weight | 34 kg |

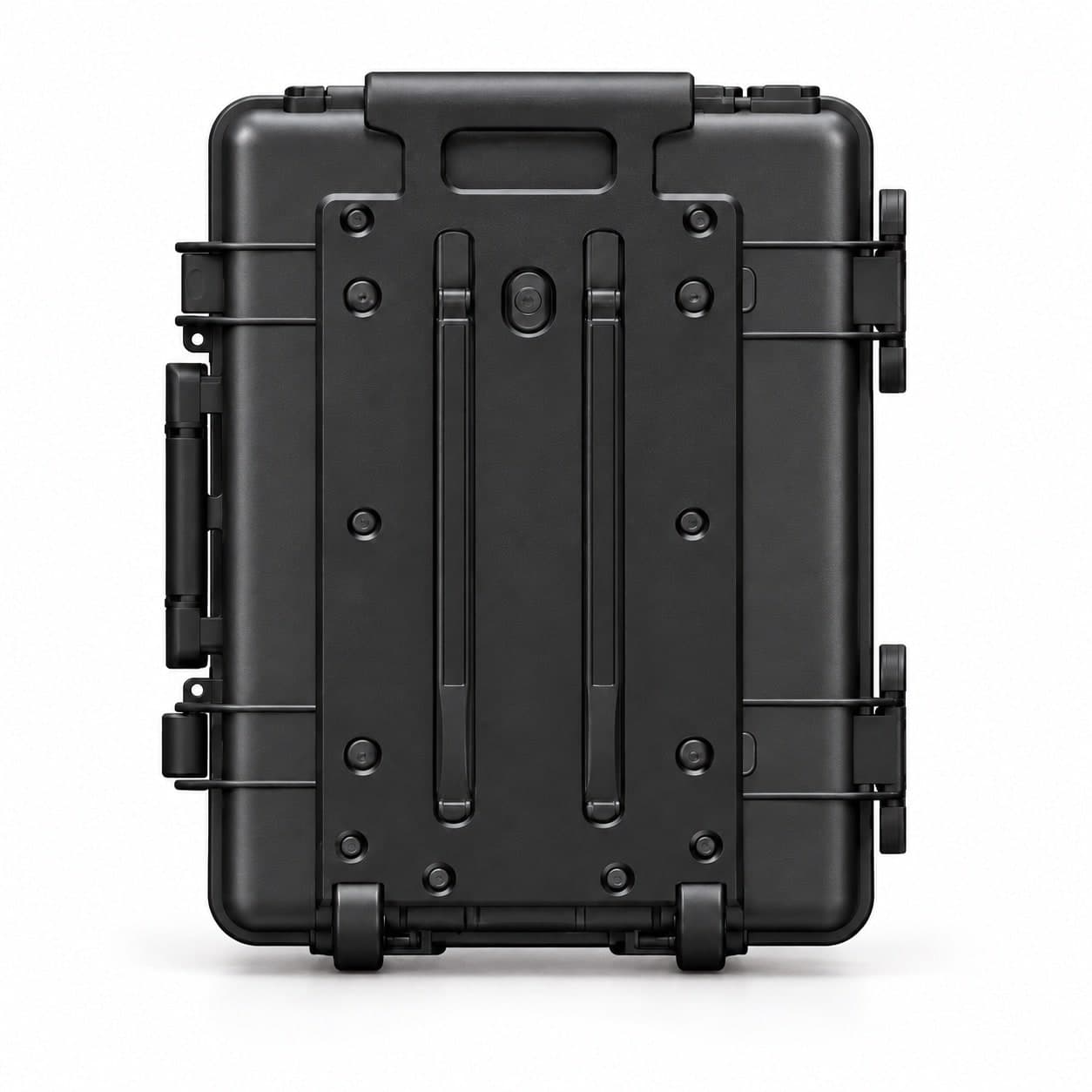

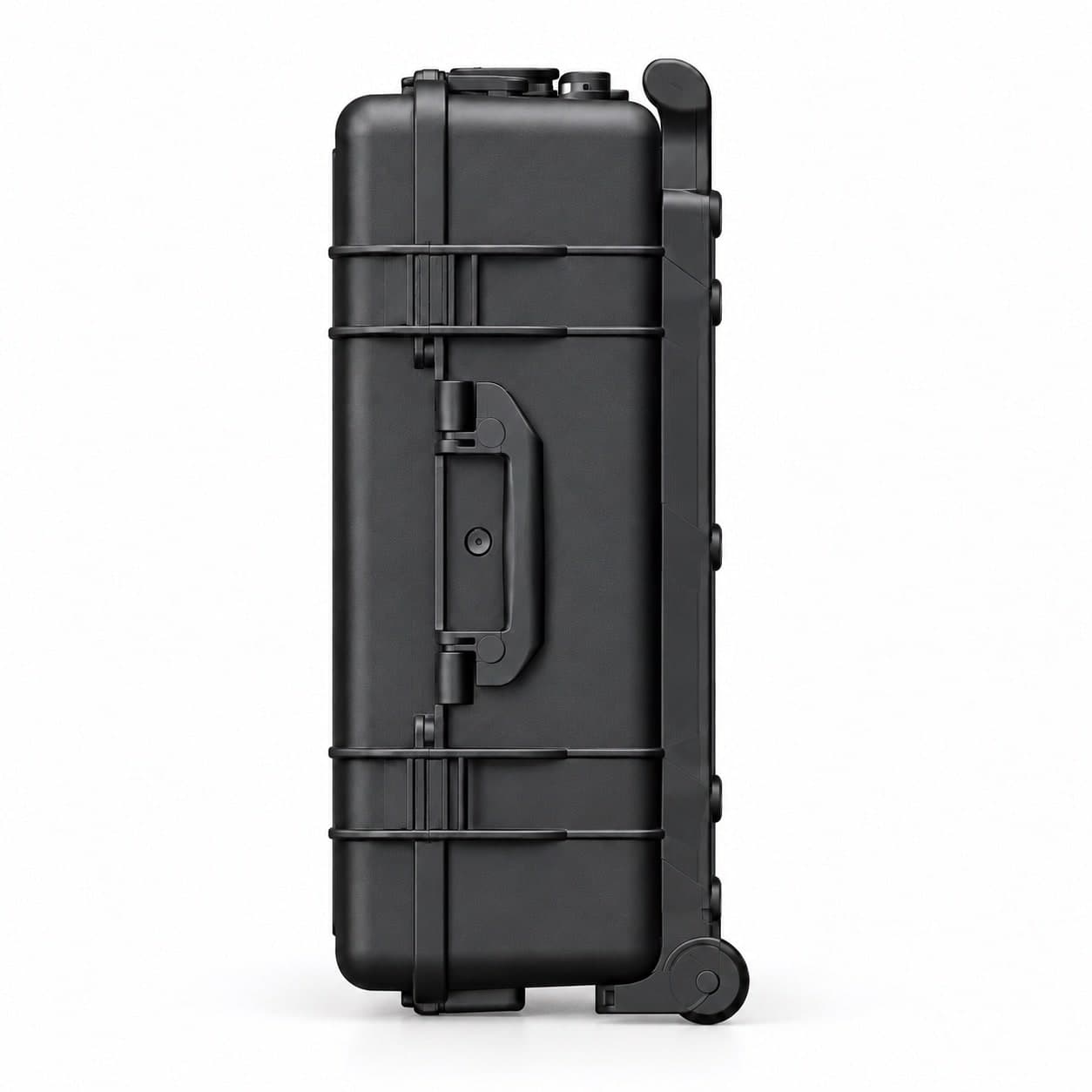

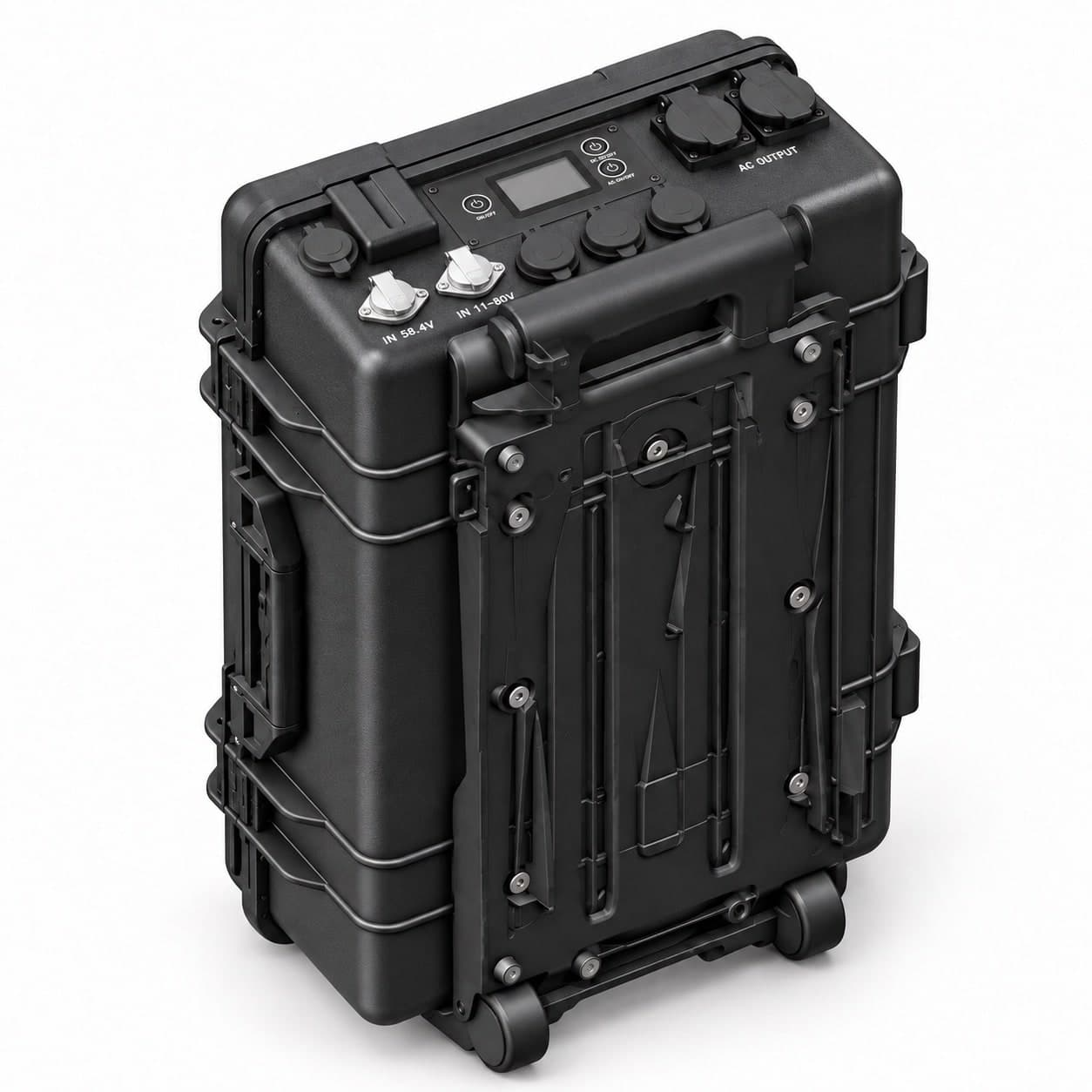

| Enclosure | Reinforced polymer case, impact-resistant, telescopic handle and wheels |
| Ingress protection rating | IP50, protected against dust, no protection against water |
| Operating temperature | Discharge −20 to 65 °C · charge 0 to 45 °C · storage −20 to 45 °C |
| Noise level | 40 dB(A) at 1 m |

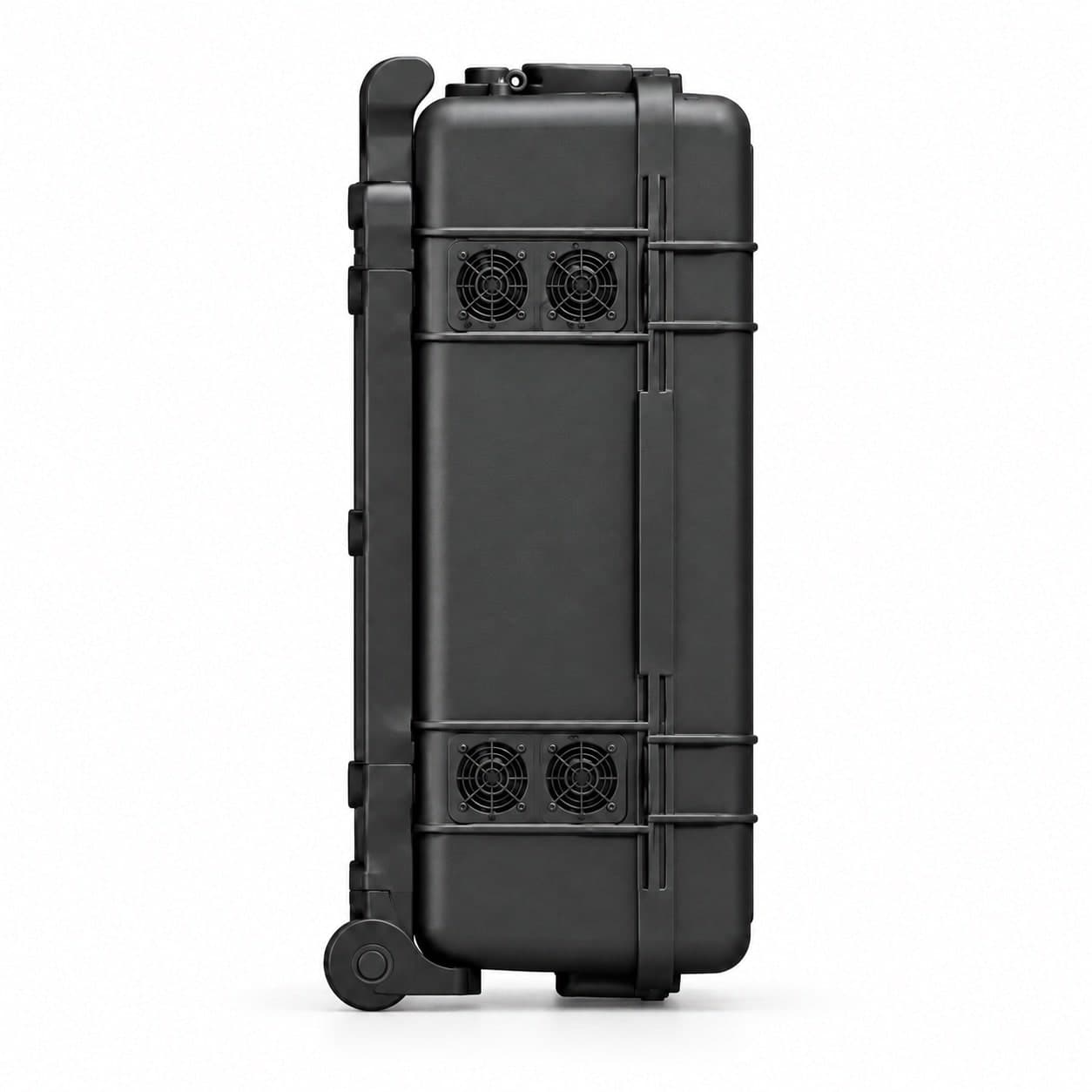

| Cooling | Ventilation controlled by load and temperature |
| Compliance | |
| Box contents | Station · mains charger · cigarette-lighter cable · MC4 solar cable · manual and warranty card |
| Warranty | 2 years, optional third year |
Values supplied by the manufacturer, subject to change.

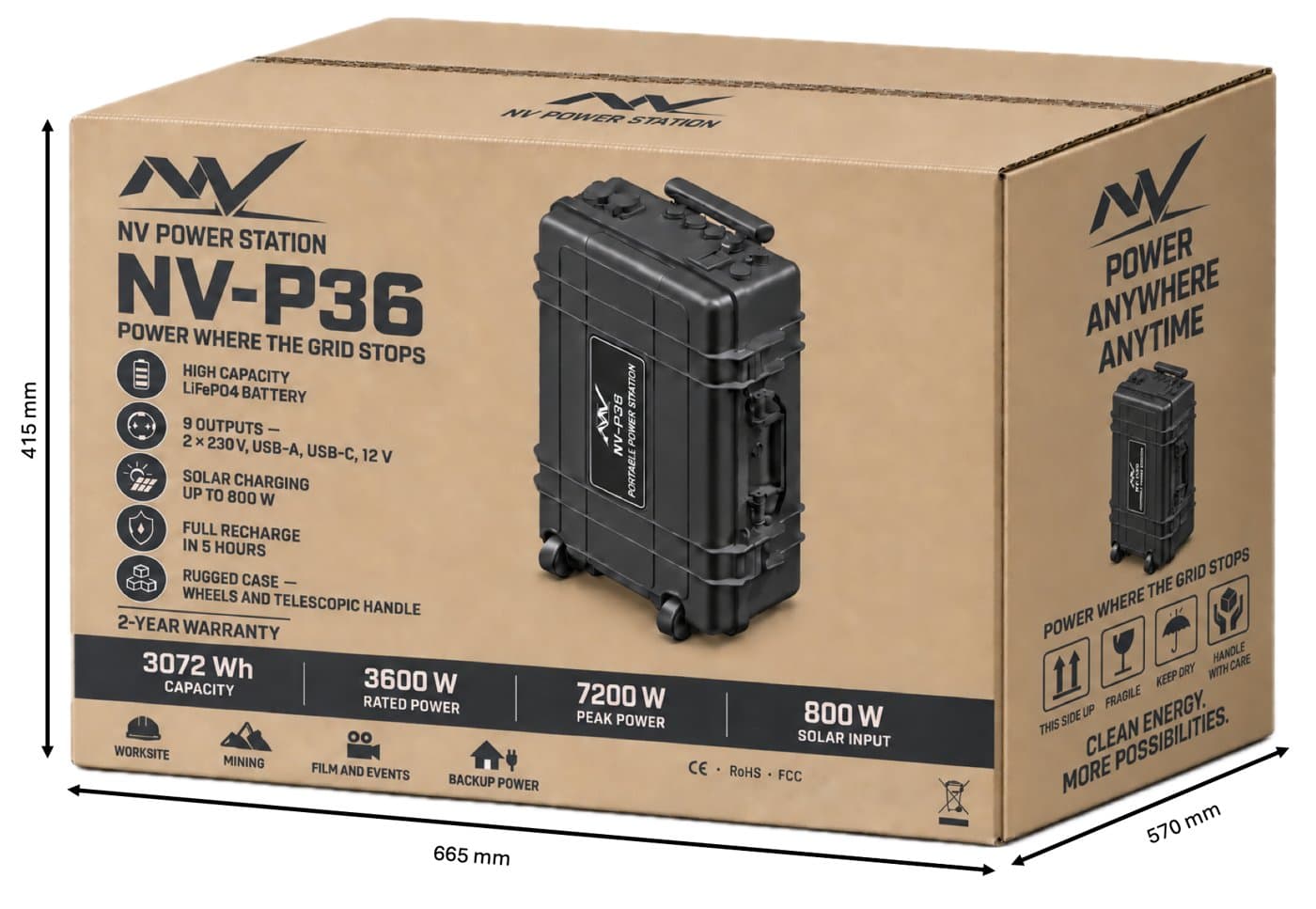

In the box
- Power station × 1
- 58.4 V / 15 A mains charger with lead × 1
- MC4 solar cable to WF20 connector × 1
- Cigarette-lighter cable to WF20 connector × 1
- Warranty card × 1
- User manual × 1
Warranty and service
2-year parts and labour warranty, optional third year. Technical and sales contact in France and the UAE.
Delivery time: please contact us.
One site, one runtime, a number of machines: we price the configuration for you.
Tell us the equipment to power, the runtime needed per station and the number of units. A priced configuration comes back to you within one working day.
