Site office
Two PCs, the printer, the router and the lighting run all day. During a power cut, nothing switches off: switchover takes under 20 ms.
Illustration: not a contractual representation.
Compact

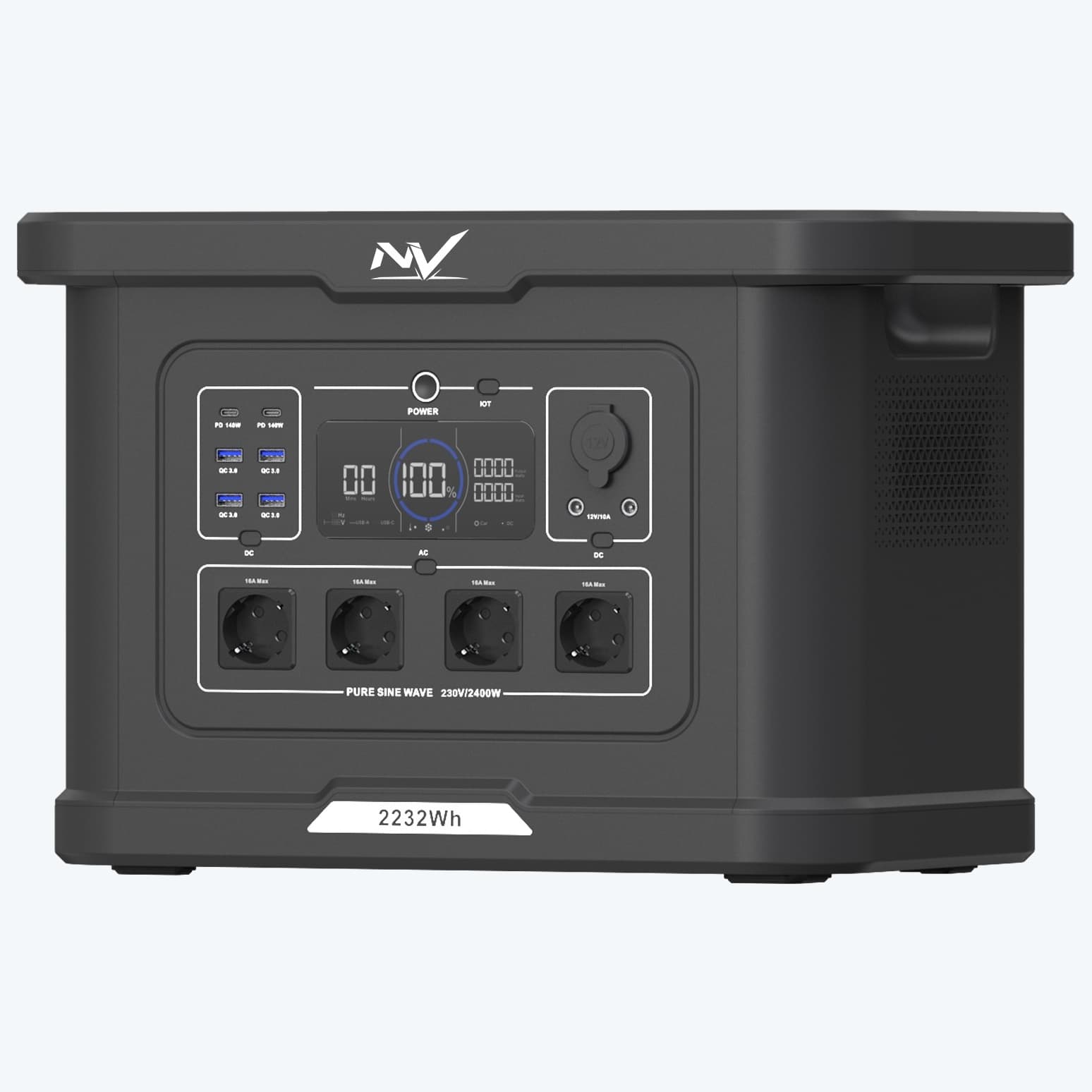

NV-C24: backup, field and site office
The compact one. Site office, IT backup, mobile crew.
- 2,232 Wh
- 2,400 Wcontinuous
- 4,500 Wpeak
- 20.5 kg
Compact backup and field station. Four 230 V sockets, two 140 W USB-C ports and a cigarette-lighter socket. UPS switchover in under 20 ms. One person can carry it from one workstation to the next.
Sold on quotation
Who it is for

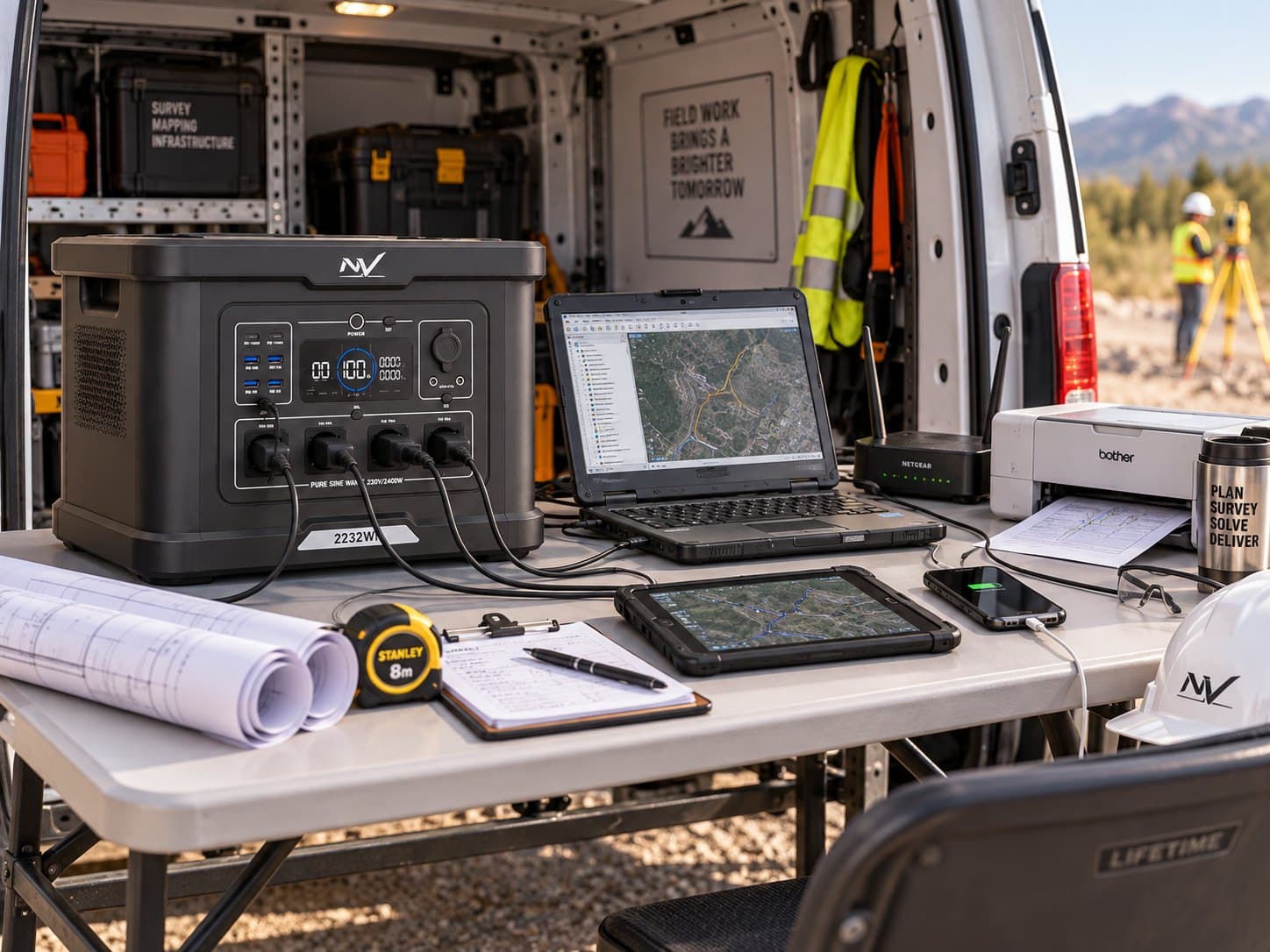

Mobile crew
In the van, it charges tool batteries and powers a workstation. It recharges from the cigarette-lighter socket while driving.
IT backup
Drawings server, cameras, access control: the pure sine wave and instant switchover make it a field UPS.

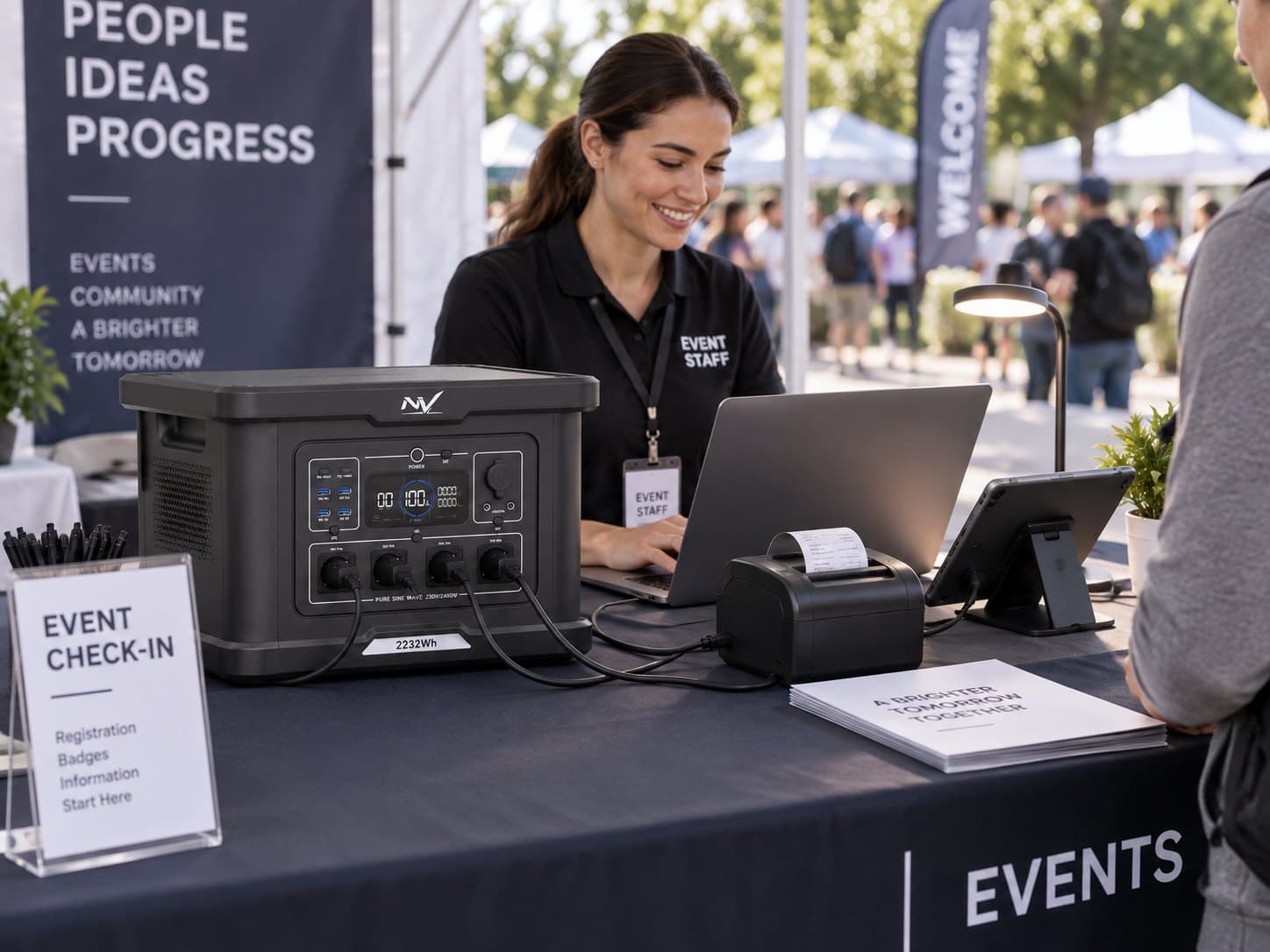

Healthcare, training, small events
No engine, no emissions, it fits in a medical tent, a training room or a reception stand.
Key features
- Thirteen outputs on a single machine: four 230 V sockets, two 140 W USB-C, four USB-A, one 12 V cigarette-lighter socket and two 12 V DC outputs.
- 2,400 W continuous, 2,600 W in Boost mode, 4,500 W peak : drill, sander, area lighting and small equipment start without tripping the breaker.
- Grade A LiFePO4 battery : 3,500 cycles above 80% capacity, 4,000 cycles above 70%.
- UPS switchover in under 20 ms : computers, drawings server, router and cameras keep running during a power cut.
- Pure sine wave : safe for IT equipment and measuring instruments.
- Three charging sources : mains, solar with built-in MPPT, and 12 V vehicle, cable supplied for all three.
- 20.5 kg : one person can carry it from one workstation to the next.
- -20 to 40 °C when discharging: it works outdoors in winter and summer alike.

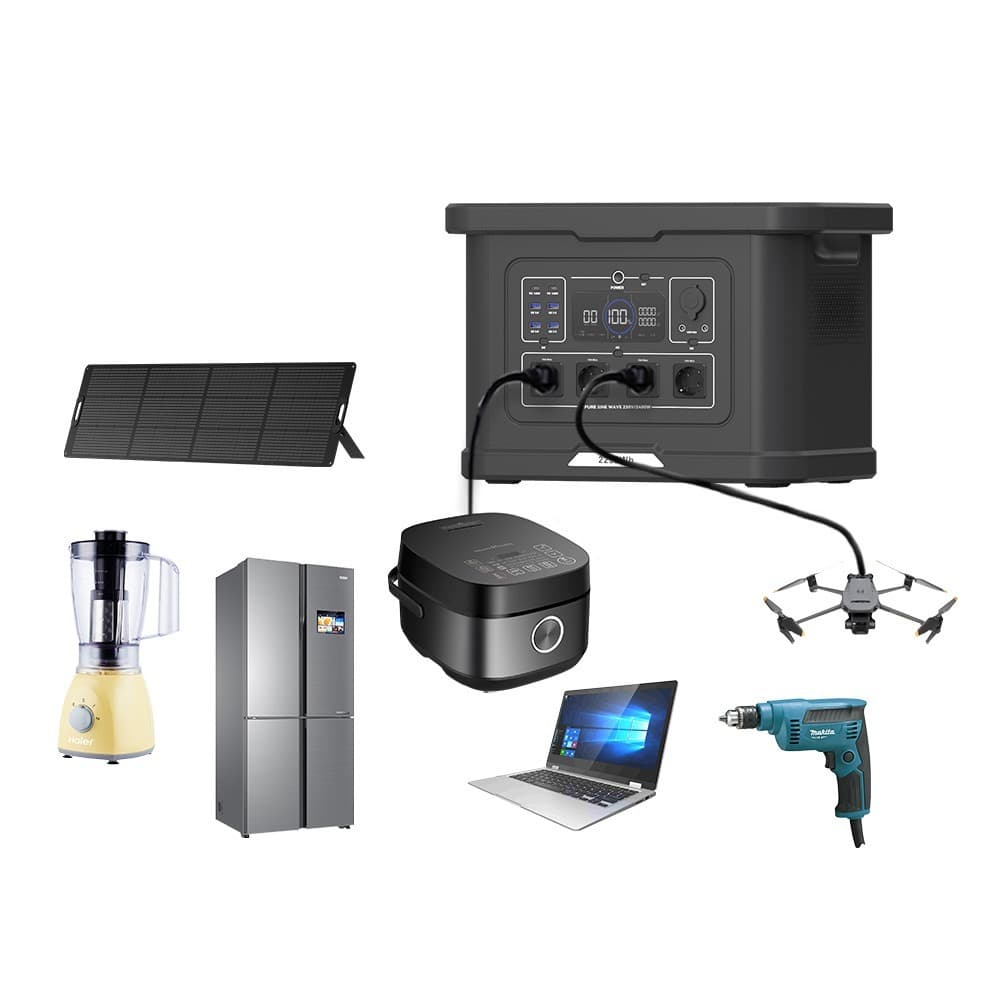

What it runs
| Equipment | Power | Runtime |
|---|---|---|
| LED site lighting, 4 floodlights | 200 W | 9 h 29 |
| Site office, 2 PCs, printer, router | 400 W | 4 h 45 |
| Site accommodation fridge | 150 W | 12 h 39 |

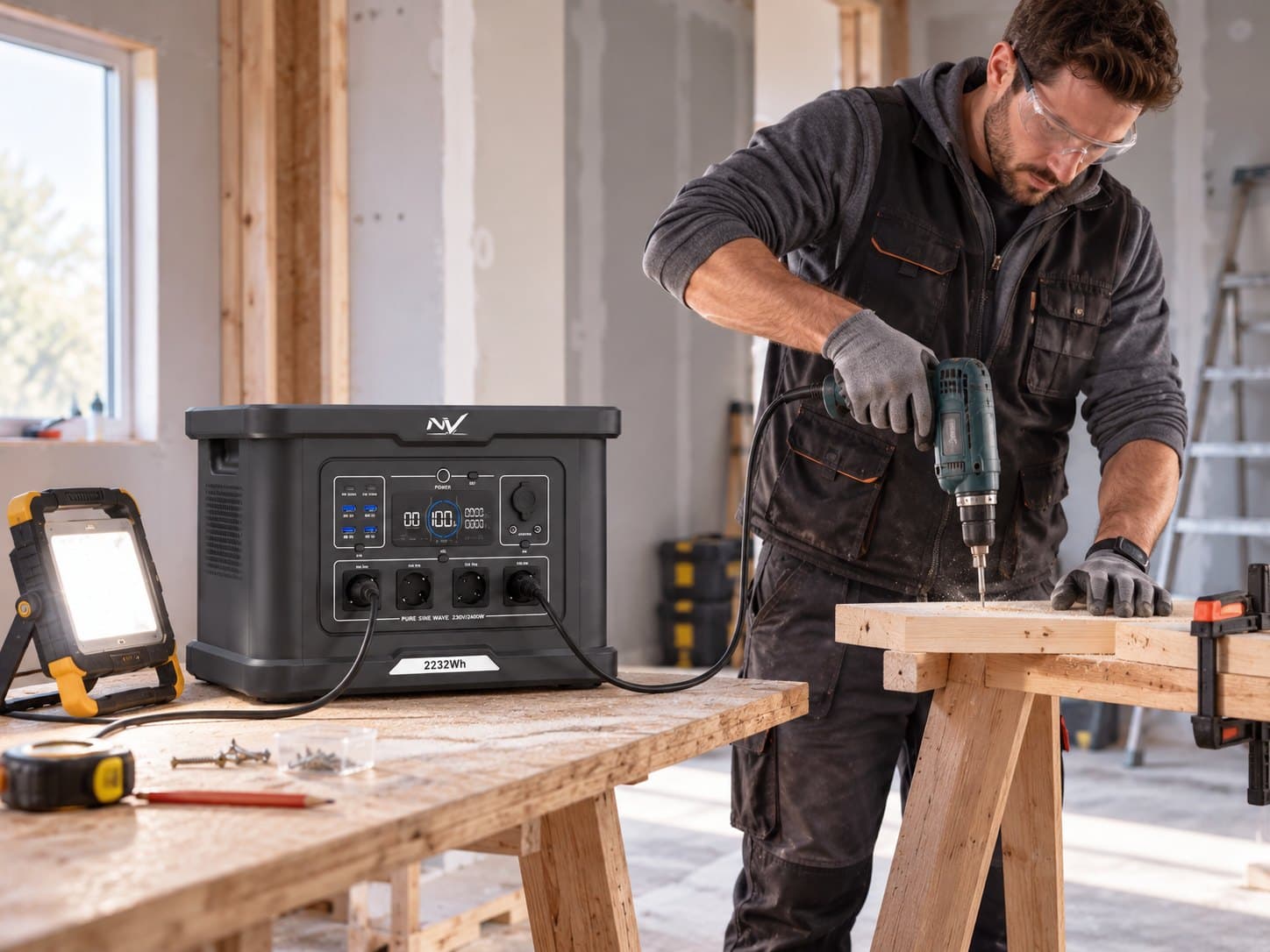

| Drill driver, small tools | 800 W | 2 h 22 |
| 125 mm angle grinder | 1,200 W | 1 h 35 |
| Electric demolition hammer | 1,600 W | 1 h 11 |
| Circular saw | 1,800 W | 1 h 03 |
| Site accommodation heater or cooler | 2,000 W | 0 h 57 |
Runtimes calculated on 85% of rated capacity, with the equipment running continuously. A device that does not run continuously (tools, compressor, fridge) lasts much longer than the value shown.

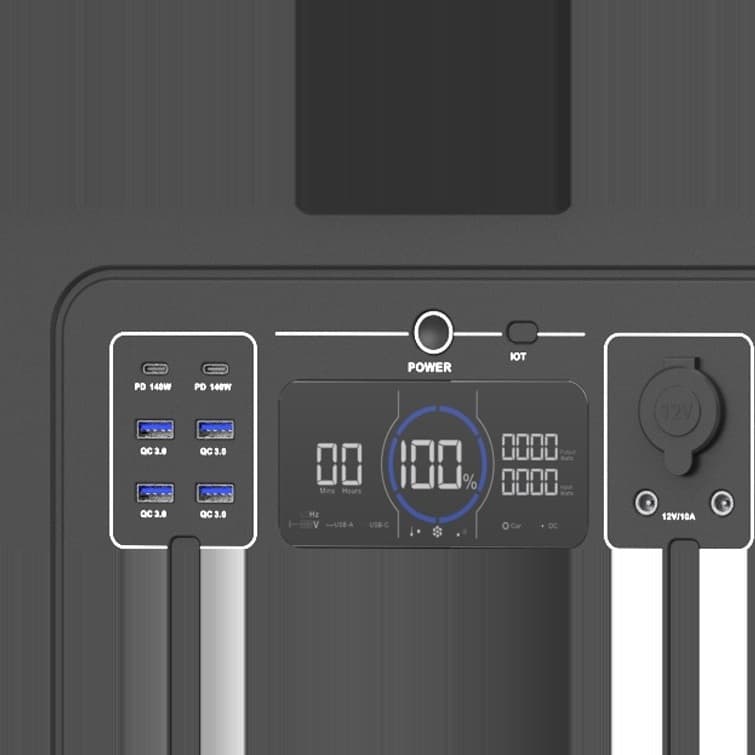

Outputs and charging
Outputs 4 × 230 V 16 A · 2 × USB-C 140 W · 4 × USB-A · 12 V cigarette-lighter socket · 2 × DC 12 V
Three ways to charge
- Mains
- full charge ≈ 3 h 12.
- Solar
- Anderson input 800 W max, built-in MPPT controller; NV panels up to 720 W (3 × NV-S240).
- 12 V vehicle
- while driving.
Simultaneous charging and use: the station supplies power while it recharges.
Compatible with
| NV-S100 | 1 to 3 in series or 2 in parallel, 300 W |
|---|---|
| NV-S240 | 1 to 3 in series, 720 W |
| Usable maximum | 720 W of NV panels |
In the field
Illustration: not a contractual representation.

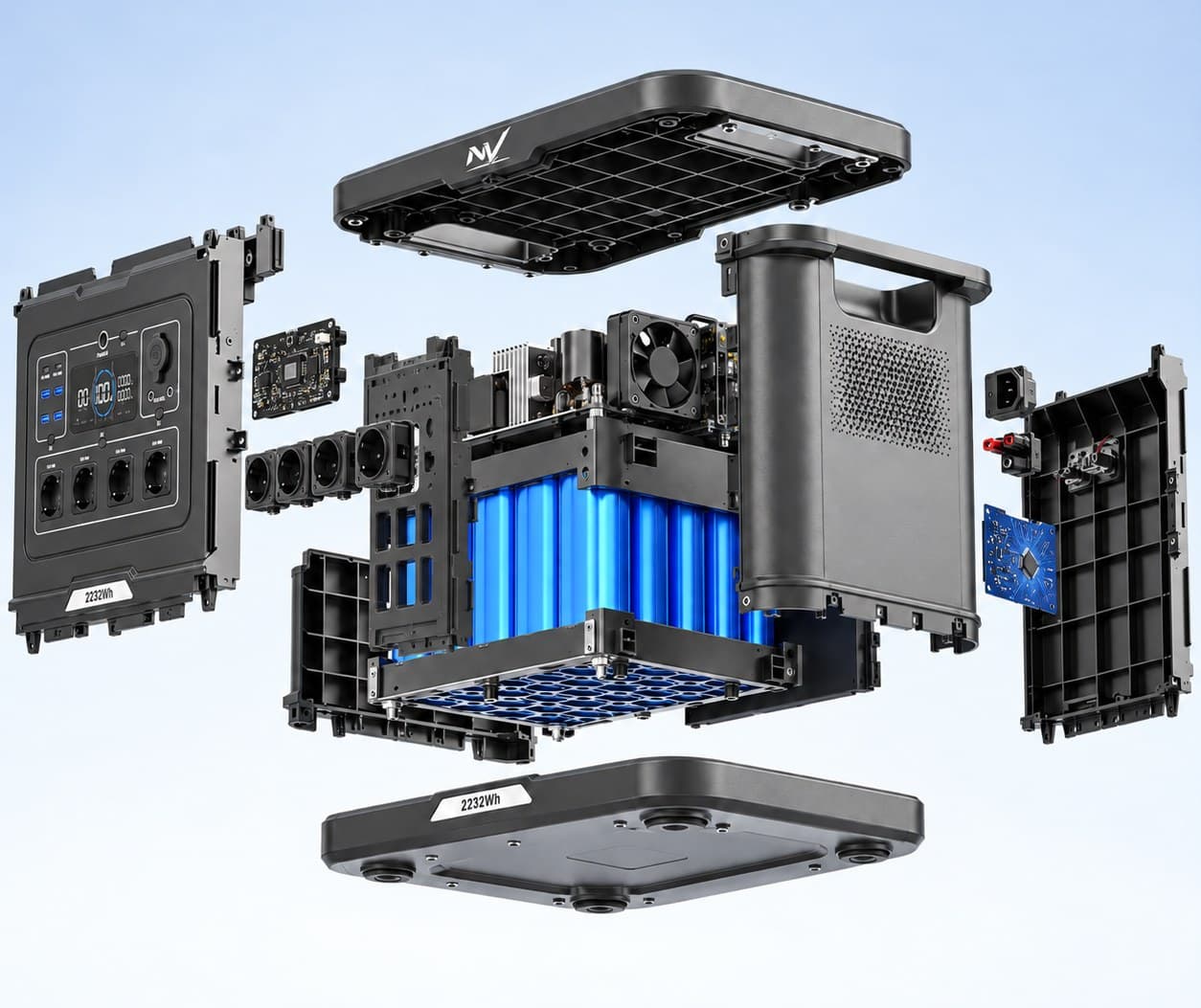

What's inside
Illustration: not a contractual representation.
Full specifications
Battery
| Nominal capacity | 2,232 Wh, 48 V / 46.5 Ah |
|---|---|
| Cell type | Grade A LiFePO4 |
| Estimated service life | 3,500 cycles > 80% · 4,000 cycles > 70% |
| Expansion | Not expandable, add a second unit on a separate circuit |
230 V output
| Rated power | 2,400 W |
|---|---|
| Boost mode | 2,600 W |
| Peak power | 4,500 W |
| Waveform | Pure sine wave |

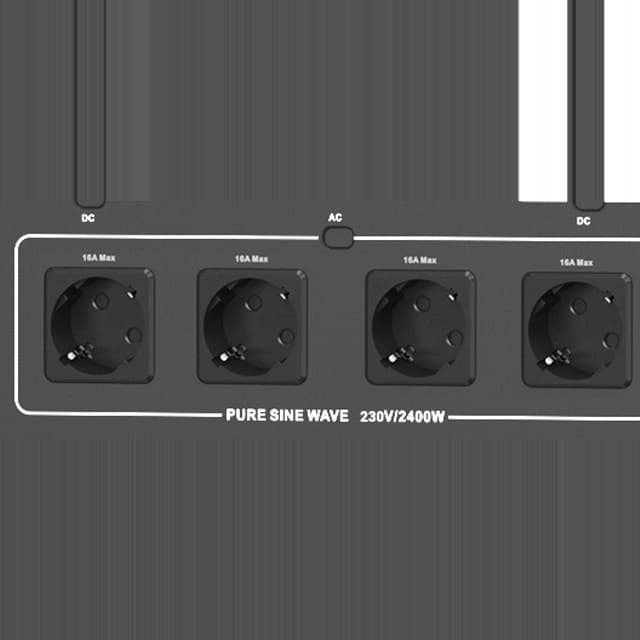

| AC sockets | 4 × 230 V / 50 Hz socket, type E/F, 16 A max per socket |
| UPS switchover | < 20 ms |
USB and 12 V outputs
| USB-C | 2 × USB-C PD, 140 W max |
|---|---|
| USB-A | 4 × USB-A QC 3.0, 18 W max |
| 12 V outputs | 1 × 12 V / 10 A cigarette-lighter socket · 2 × DC 5521 12 V / 10 A |
| Total number of ports | 13 |
Charging inputs
| Mains | 700 W (190 to 250 V AC) |
|---|---|
| Mains charging time | ≈ 3 h 12 for a full charge |
| Solar input | Anderson, 12 to 78 V DC · MPPT 16 to 70 V · 13 A · 800 W max |
| Solar charge control | Built-in MPPT |
| Compatible panels | 1 to 3 NV-S240 in series, 720 W · 1 to 3 NV-S100 in series or 2 in parallel, 300 W |
| Vehicle charging | Yes, cigarette-lighter cable supplied |
| Simultaneous charging and output | Yes |
General
| Dimensions | 457 × 270 × 310 mm |
|---|---|
| Net weight | 20.5 kg |
| Ingress protection rating | IP21, indoor or sheltered use |
| Operating temperature | Discharge -20 °C to 40 °C · charge 0 °C to 40 °C |
| Control | Smartphone app, Bluetooth and Wi-Fi |
| Compliance | |
| Warranty | 2 years, optional third year |
Values supplied by the manufacturer, subject to change.
In the box
- Power station × 1
- Mains charging cable × 1
- MC4 to Anderson cable (solar) × 1
- Cigarette-lighter to Anderson cable (vehicle) × 1
- Warranty card × 1
- User manual × 1
Warranty and service
2-year parts and labour warranty, optional third year. Technical and sales contact in France and the UAE.
Delivery time: please contact us.
One site, one runtime, a number of machines: we price the configuration for you.
Tell us the equipment to power, the runtime needed per station and the number of units. A priced configuration comes back to you within one working day.
