Solar and extension
Extension batteries
An NV station is not a closed product. When the runtime is no longer enough, add a battery: same LiFePO4 chemistry, one cable. Capacity goes up; output power stays the same.

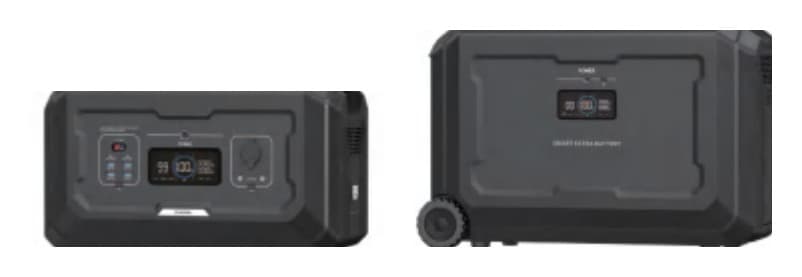

NV-B2
It recharges on its own. The NV-B2 has its own solar input and its own outputs: set beside the station, it extends runtime without going through the main unit.
| Capacity | 2,048 Wh (51.2 V / 40 Ah) |
|---|---|
| Chemistry | LiFePO4 (LFP) |
| Cycle life | 3,500+ cycles, about 10 years at one charge per day |
| Battery port voltage range | 44 V to 56.5 V |
| Own outputs | 12 V / 10 A cigarette lighter (120 W), USB-A 18 W max, USB-C 100 W max, Anderson 12 V / 30 A |
| Own solar input | 12 to 148 Vdc, MPPT 18 to 140 V, 15 A, 2,100 W max |
| Car charge input | 12 to 15 V, 8.5 A |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | −20 °C to 60 °C |
| Dimensions | 460 × 270 × 255 mm |
| Weight | 19 kg |
| Compatible stations | NV-W36 |
| Certifications | CE · RoHS · FCC |
NV-B5
The extension battery for the NV-W50: 5,040 Wh per module, up to six modules.
| Capacity | 5,040 Wh (48 V / 105 Ah) |
|---|---|
| Chemistry | LiFePO4 (LFP) |
| Cycle life | 3,500+ cycles |
| Battery port voltage range | 41.2 V to 53.5 V |
| Own outputs | None (slave battery) |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | −20 °C to 60 °C |
| Dimensions | 641.5 × 304.5 × 437.5 mm |
| Weight | 43.85 kg |
| Compatible stations | NV-W50 |
| Certifications | CE · RoHS · FCC |
How many can I add?
Up to six batteries per NV-W36 or NV-W50.
The NV-C24 and NV-P36 do not take an extension battery.
| Station | Battery | Base capacity | With extensions | Total |
|---|---|---|---|---|
| NV-W36 | NV-B2 | 3,072 Wh | + 6 × 2,048 Wh | 15.4 kWh |
| NV-W50 | NV-B5 | 5,040 Wh | + 6 × 5,040 Wh | 35.3 kWh |
Safety rule
Never connect or disconnect an extension battery while the station is on. Switch off both the station and the battery before plugging in the extension cable.
